Description
Note: EXPLORR Utility Mount suppressors no longer include a HUB Mount Adapter or Muzzle Device to reduce cost for users opting for other mounting systems.
The EXPLORR® series was built on years of prior experience and R&D with tubeless designs. Relatively unknown, Griffin started pushing the limits on modern suppressor engineering when in 2010, they designed the first tubeless silencers in the US. Tubeless designs although relatively featureless, provide the most optimal strength to weight ratio of any construction method. With a solid background in tubeless suppressor engineering, Griffin sought to push the limits of what was capable by creating the EXPLORR® series of suppressors that hit titanium weights with a more durable material. Lower weight means smaller point of impact shift, higher unsupported position accuracy potential, and less fatigue to the user when carrying equipment.
It features our utility patented ECO-FLOW™ baffle system offering the apogee of multi-caliber sound performance. This baffle system reduces back pressure which alleviates much of the blow back through semi auto actions providing a more comfortable experience to the end user. This baffle system is tuned such that performance at the muzzle of the suppressor and the ears of the operator are balanced for a uniform and low sound signature in the immediate vicinity of the shooter.
Another notable improvement in the EXPLORR® (Gen 2) family is the integration of the backward compatible Taper Mount-RI™ interface (Rapid Index). The Griffin Taper Mount interface is a gold standard in the industry, providing secure attachment, and unbeatable accuracy to consumers for over a decade. This interface has been improved however, being 3X faster to mount than the original by engineering a precision indexing feature in the interface and using fewer machined thread rotations in a more optimal position within the body. The original Griffin Taper Mount took roughly 15 seconds on average to mount and the new system can be reliably mounted in 5 seconds. Accuracy, and POI shift have been improved while the secure attachment the Griffin Taper Mount is known for has not changed, resulting in a next generation Taper Mount-RI™, an ideal system built on over a decade of taper mount manufacturing and research.
The EXPLORR® is fully CNC machined, and is now laser welded to reduce weight but increases the overall durability of the suppressor. The benefits of laser welding include a much deeper penetrating, evenly distributed precision weld to greatly enhance the strength of the attachment bond, while also creating a more polished appearance to the exterior of the suppressor.
Every component in the EXPLORR® is manufactured from solid, high temperature corrosion resistant 17-4 Stainless Steel, and then H900 heat treated to ensure maximum service life is provided. Years of internal testing has found 17-4 stainless steel to provide longer service life than 718 Inconel, the prior market leading alloy. 17-4 stainless is also twice as strong as cast Stellite 6, used by some industry companies. A Taper Mount EZ Brake is included, making the EXPLORR® a terrific value.
Slightly heavier than its Taper Mount cousin, the Utility Mount version is suited to those seeking to get the most versatility out of their next adventure.
MOUNTING OPTIONS AVAILABLE:
Utility Mount EXPLORRs DO NOT SHIP with a HUB adapter or muzzle device, and must be purchased separately.
- PLAN-A™ Short – Taper Mount HUB Adapter (sold separately) allows compatibility with: the Taper Mount EZ Brake™, Taper Mount Minimalist Flash Suppressor, Taper Mount Paladin® 2 Port Brake, Taper Mount Hammer Comp, & ALL Taper Mount Direct Thread Adapters
- PLAN-A™ Long – Taper Mount HUB Adapter (sold separately) allows compatibility with: the Taper Mount Tactical Compensator, Taper Mount Stealth Flash Suppressor (2.25″), Taper Mount Linear Compensator, & Taper Mount FlashComp
- A2 HUB Mount Adapter (sold separately) allows compatibility with: our 30SD FlashComp, M4SD FlashComp (5.56mm), M4SD Hammer Comp (5.56mm), & other A2 compensators (must be within mil-spec)
- EZ-LOK™ HUB Mount Interface (sold separately) allows compatibility with EZ-LOK™ barrel adapters
Listed below are additional mounting options for the EXPLORR®. However, we do not recommend that users mount this particular suppressor in either of these ways. If a user is specifically interested in either of these mounting styles, there are better suppressor options suited for the job. Customer service receives countless questions from users inquiring about compatibility and mounting options so we felt it necessary to include this information. Also included are the only applications that could possibly justify using these mounting styles for this suppressor.
3-Lug fits, but not recommended
- Bushwhacker® 46 Booster Housing (housing only) in conjunction with desired 3 Lug Interface
- 9mm 3 Lug Barrel Adapters & .45 Caliber 3 Lug Barrel Adapters available
- Possible application: light duty only – limited semi-auto only
- 5.56mm semi-auto 14.5″
- 5.7x28mm semi-auto
KEY FEATURES:
- 17-4 Stainless Steel Fully H900 Heat Treated
- Laser Welded
- Minimal and Repeatable POI shift
- Rock Solid Mounting
- Low Profile Flash Suppressor
- ECO-FLOW™ baffle system for improved performance
- Compatible with Griffin Taper Mount devices
- Supports Taper Mount, DUAL-LOK®, GATE-LOK™, EZ-LOK™, and 3 Lug QD Kits
- Griffin Cerakote finish
- Perpetual™ Lifetime Warranty
CALIBER RATING:
The EXPLORR® suppressor is rated up to .22-250 REM.
WHAT’S IN THE BOX?

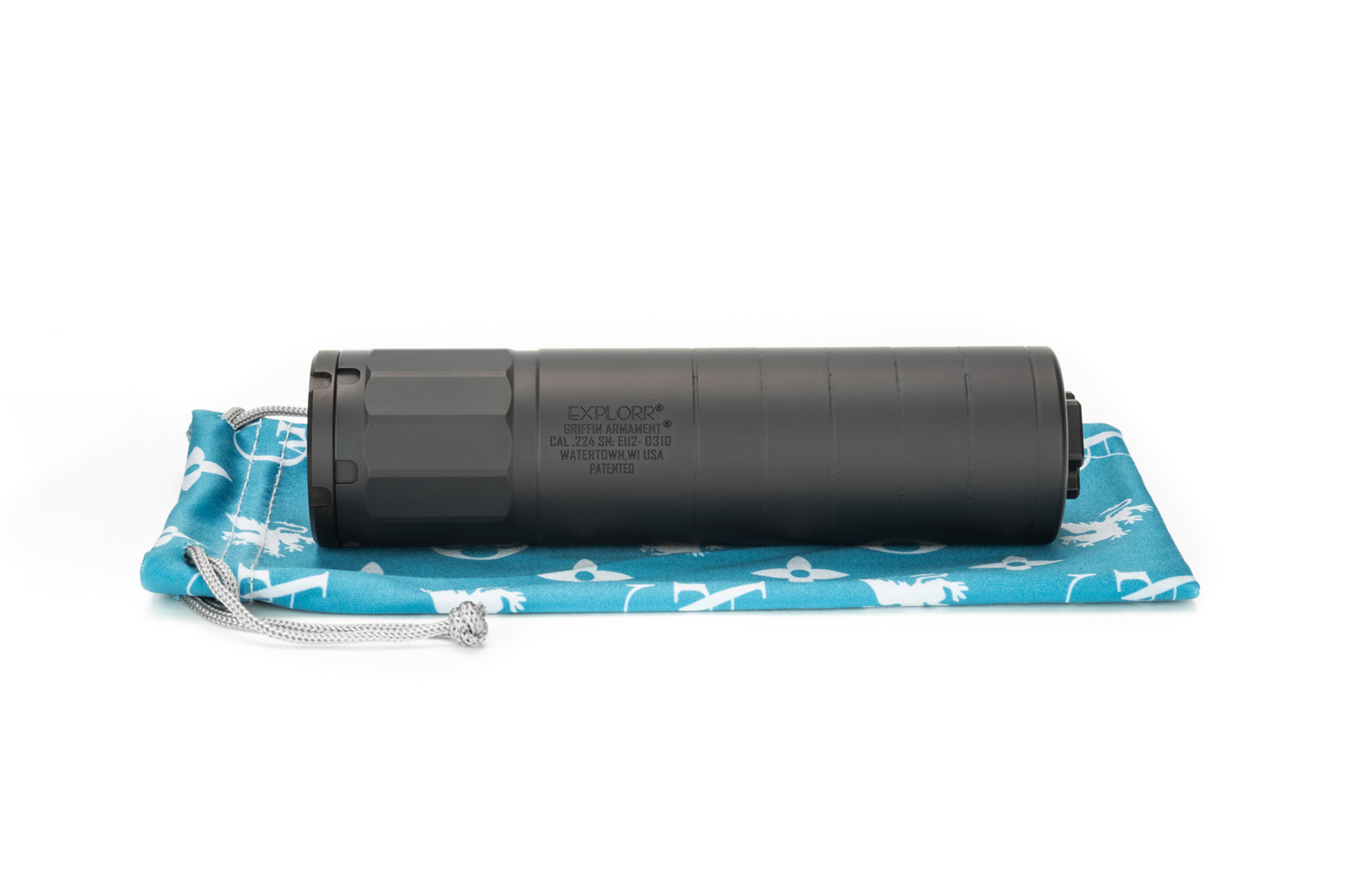

- EXPLORR® Utility Mount, 1.375×24, .224 CAL suppressor
- Branded Griffin pouch
- Bushwhacker® wrenches (2)
AVAILABLE MAINTENANCE ITEMS:
-
Alignment Rods (to verify proper installation)
DIGITAL MANUAL:
-
CLICK HERE FOR MANUAL
BARREL LENGTH RESTRICTIONS PER MOUNTING STYLE:
Taper Mount
EXPLORR® suppressors do not have minimum barrel length restrictions or constraints for rifle calibers. While longer barrels promote longer service life, there are no barrel length restrictions with this suppressor!
A2
Minimum barrel length : 10.5″ 5.56/.223
