OPTIMUS® 6 Silencer (All Mounts)

Description

The Optimus® 6 is a 6mm bore additive manufactured (3D Printed) suppressor optimized for reducing system backpressure over “traditional” suppressors by way of its high-flow baffle design, while maintaining impressive flash and sound reduction. The quad-tine flash hider endcap was painstakingly tuned in conjunction with the low backpressure baffle stack to kill flash at a level almost unseen in other low backpressure suppressors available on the market. The Optimus® 6 is available in three mounting variants: Taper Mount, DUAL-LOK®, and Utility Mount (HUB 1.375×24 TPI); and user’s choice of black or FDE high-temp cerakote finish. This suppressor was optimized for 5.56mm platforms, with the capabilities for high performance on 6mm projectiles.

The Optimus® 6 is made entirely from ultra-strong 17-4 stainless steel. The tube body of the printed core is machined during post-production to create a smooth, beautiful exterior absent of the normal printing layers visible in most other printed cans. The blast shield and mount system is machined in-house from 17-4 SS, then laser-welded to the baffle core allowing for easy warranty of the suppressor in the case of a baffle strike or other catastrophic failure. Optimus® 6 suppressors, like all other Griffin suppressors, are warrantied for life under Griffin’s Perpetual Lifetime Warranty™.

Griffin Armament has been designing and prototyping additive-manufactured suppressors for many years, but felt the technology had not become accessible or affordable enough to bring to market a feature-packed sound suppressor at a value-driven price. Recent advancements in 3D metal printing technology has changed this and in response Griffin went full-tilt into designing it’s first line of suppressors manufactured using this technology.

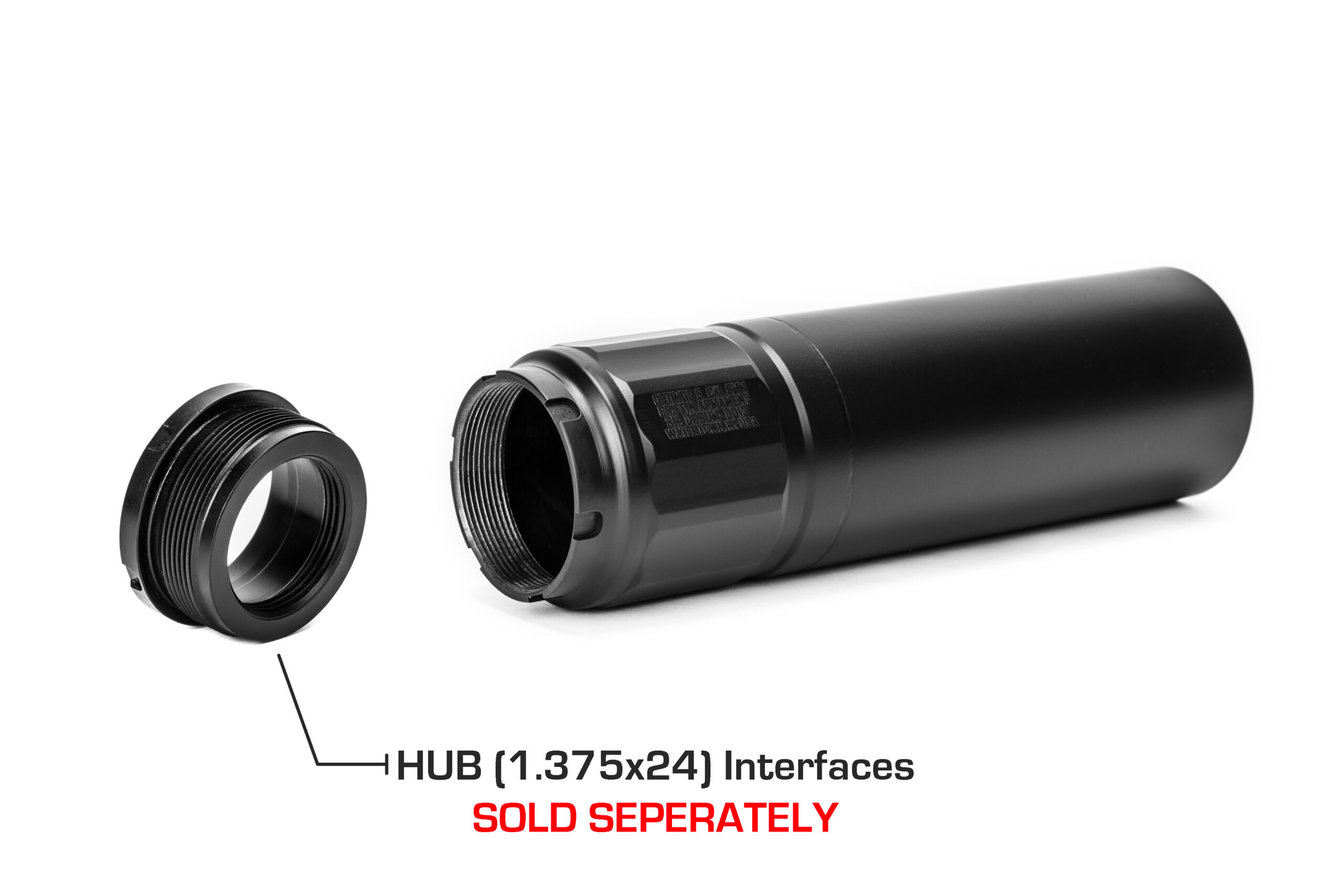

NOTE: Utility Mount (HUB) Optimus® 6 Suppressors DO NOT COME WITH A MUZZLE DEVICE OR HUB INSERT. Muzzle Devices and mount interfaces for HUB-mount variants must be purchased separately.

FEATURES :

• 3 Mounting Options: DUAL-LOK®, Taper Mount, or Utility Mount (HUB 1.375×24 TPI)
• 1.73″ Tube Diameter for Increased Internal Volume
• Multi-Jet Fusion | Additive Manufacturing (3D Printing)
• High Flow Baffle Stack and End Cap

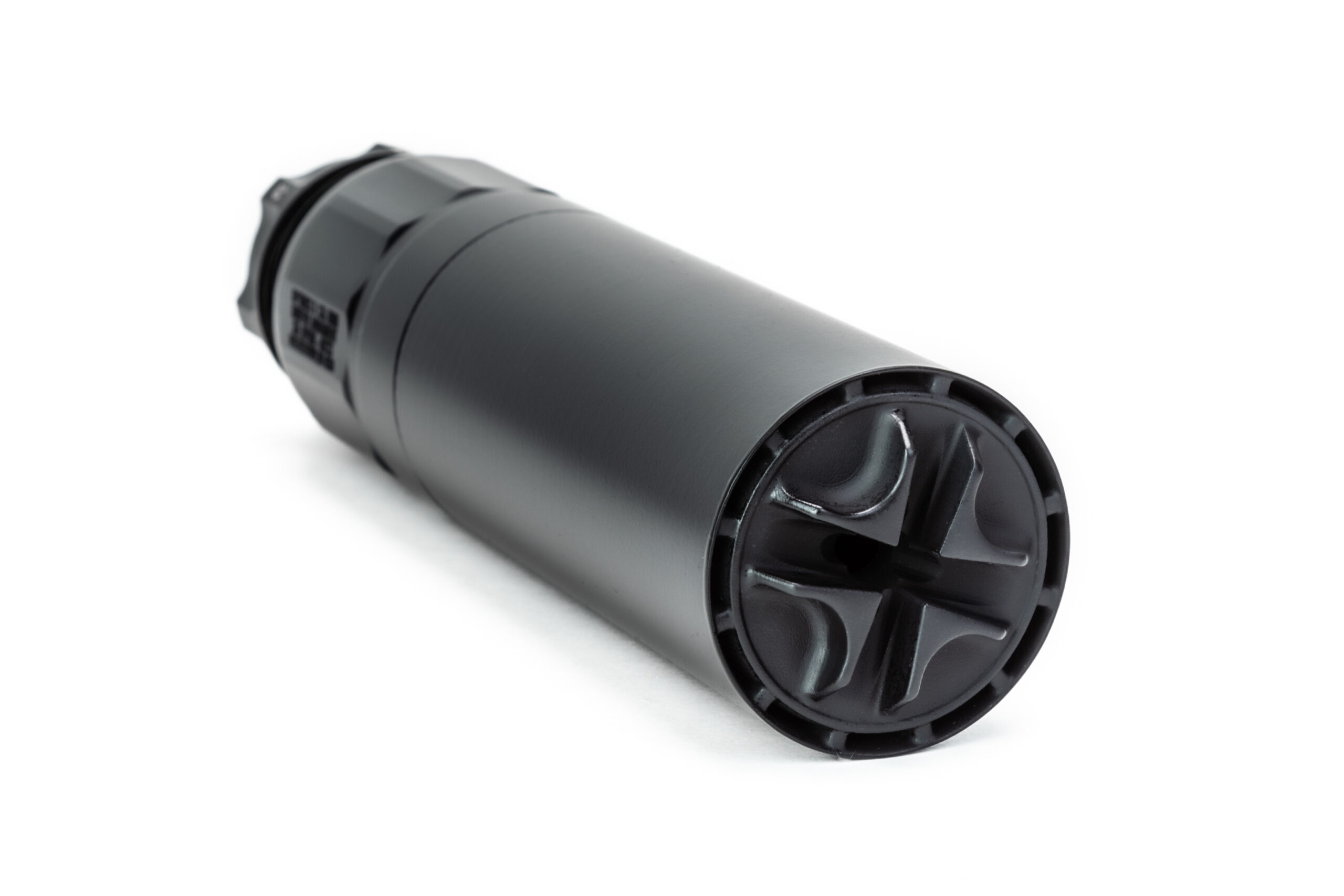

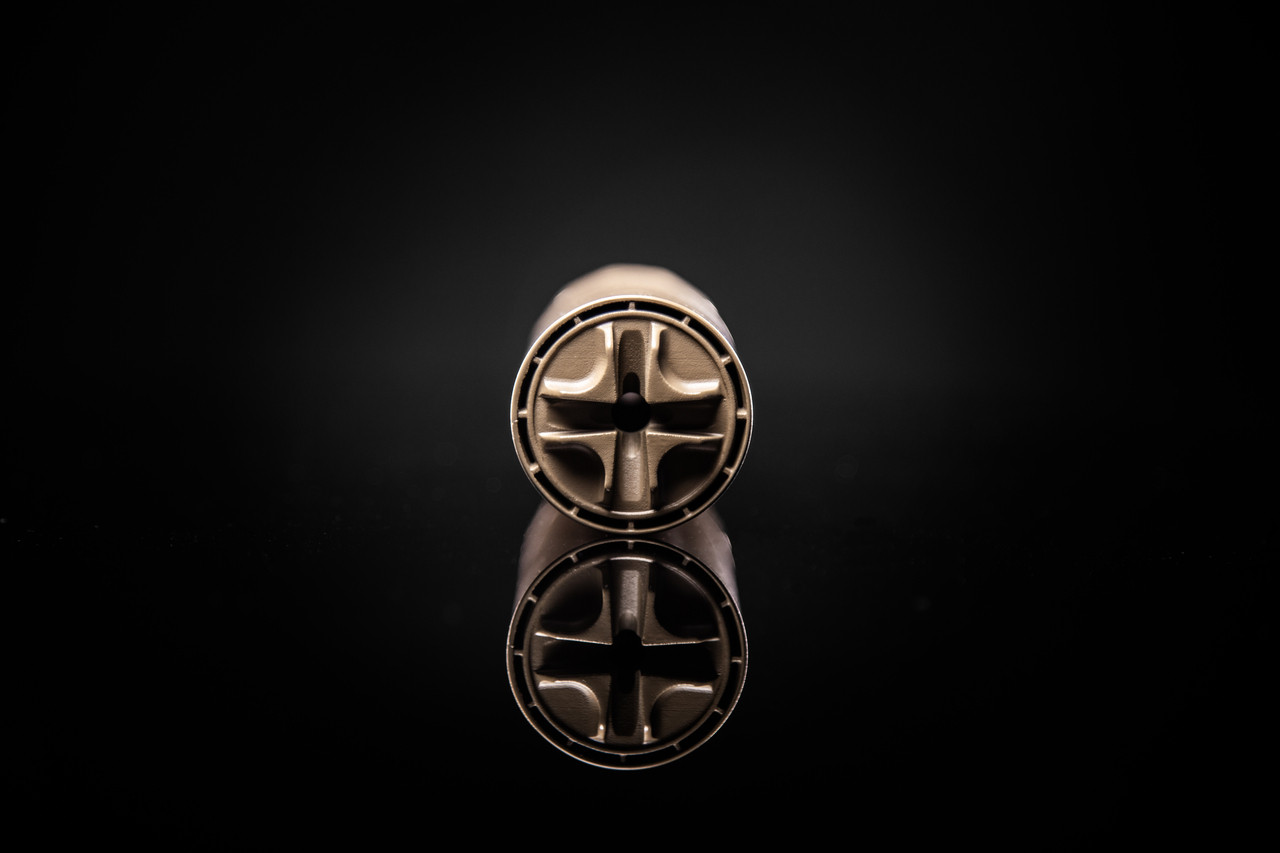

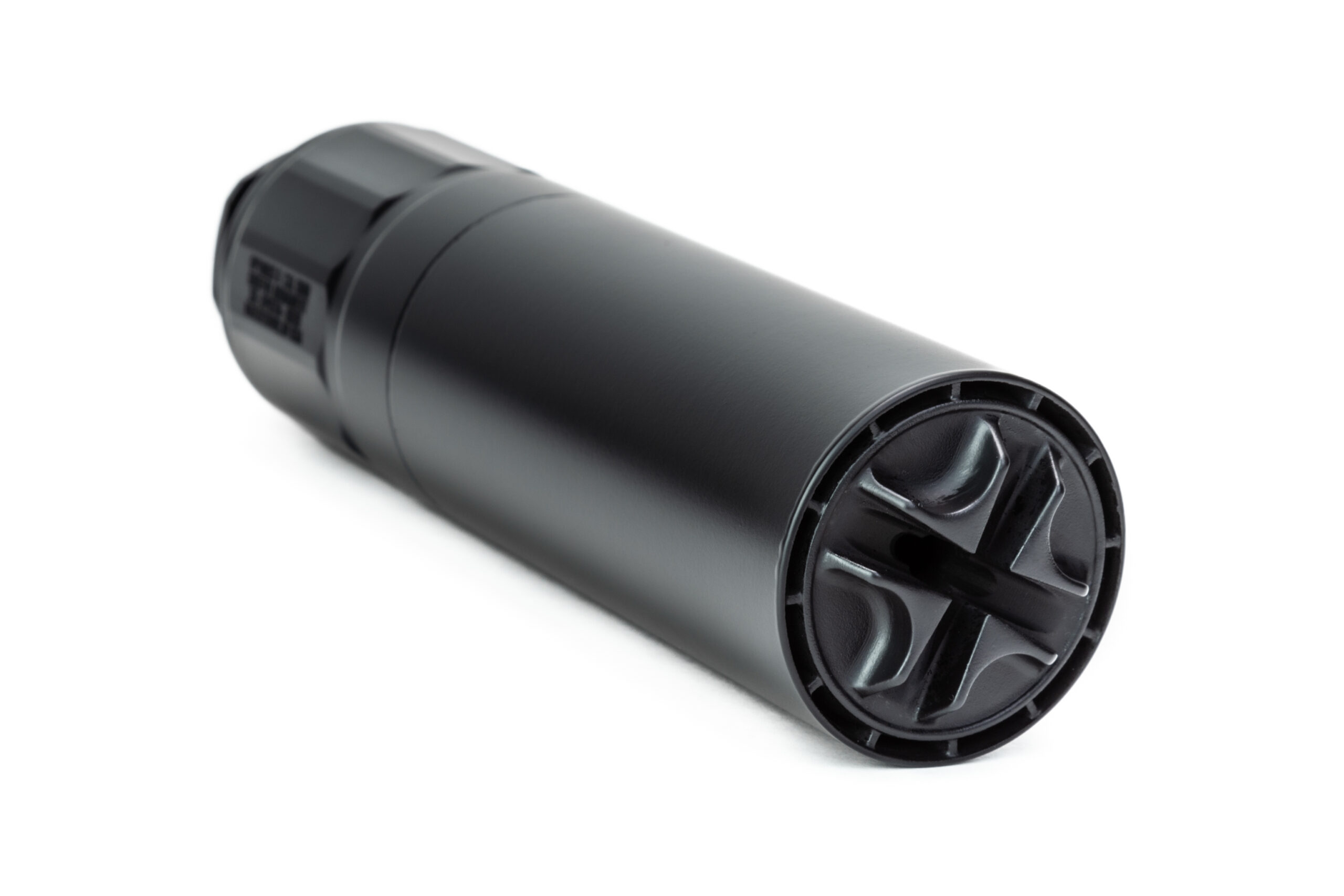

• Flash-Killer Quad-Tine End Cap for Maximum Flash Reduction
• Available in Black or FDE High Temp Cerakote Finish
• Full 17-4 Stainless Steel Construction
• EZ-Brake™ (.22cal – 1/2×28) Included with DUAL-LOK® and Taper Mount Models (HUB Mounts and Muzzle Device for Utility Mount models MUST BE PURCHASED SEPARATELY)
• Perpetual Lifetime Warranty™

Specs:

Diameter: 1.73″ (All Models)
Materials: 17-4 H900 Stainless Steel
Attachment System: User’s Choice of Taper Mount, DUAL-LOK®, or Utility Mount (HUB)
dB Rating: -22.2 dB (137.0 dB on 11.5″ Griffin MK2 – 55 gr M193)
Finish: High Temp Cerakote
Full Auto Rated: YES

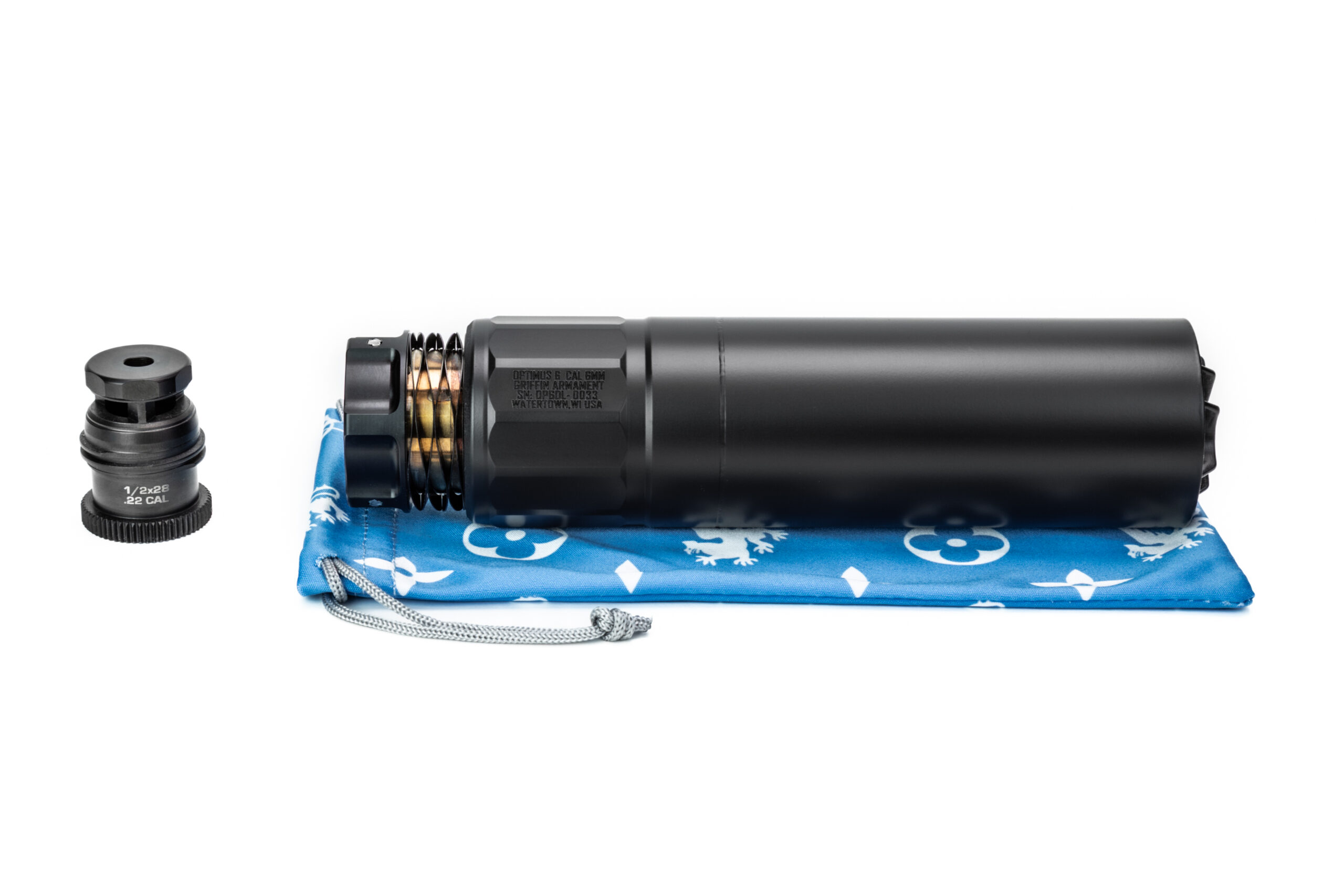

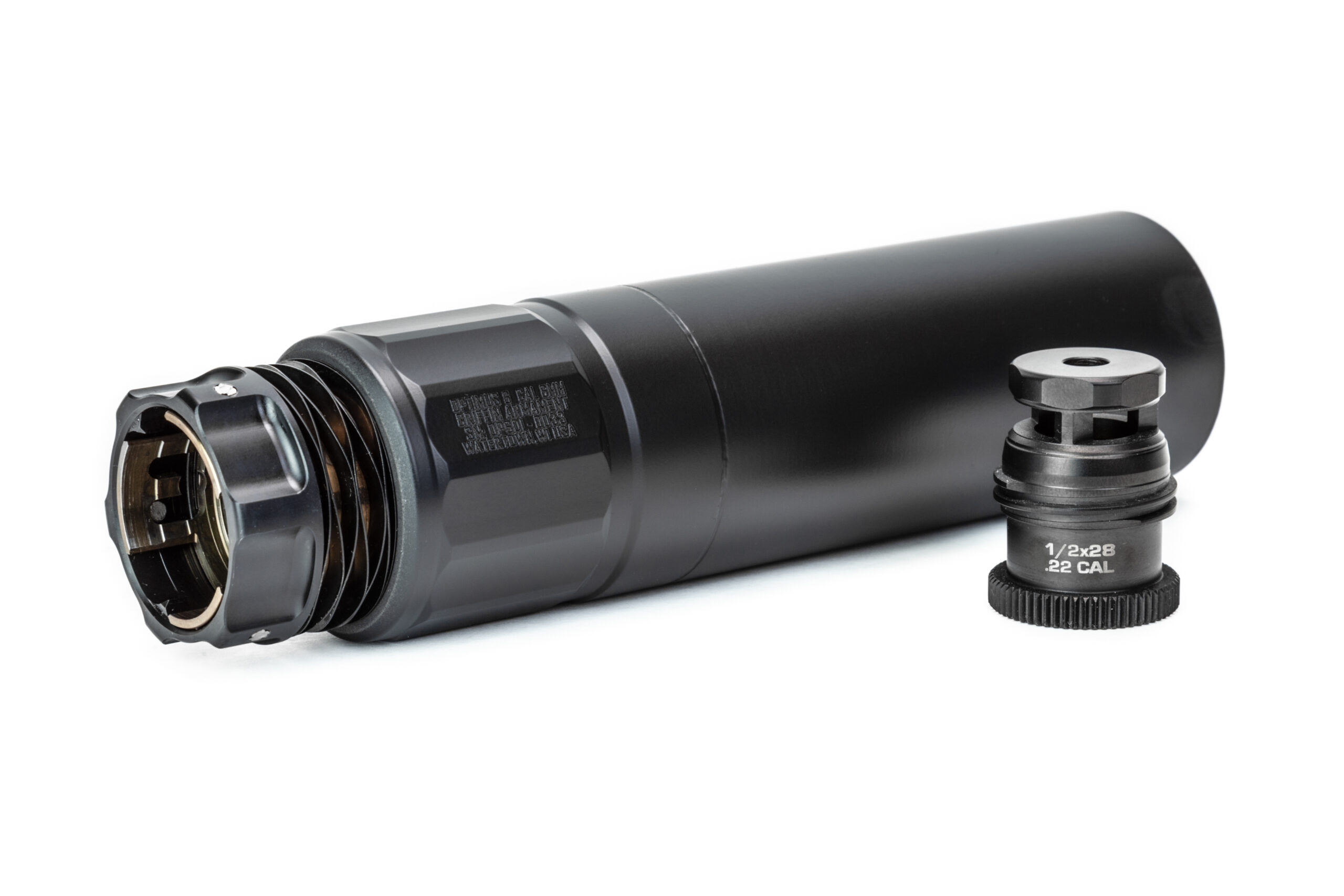

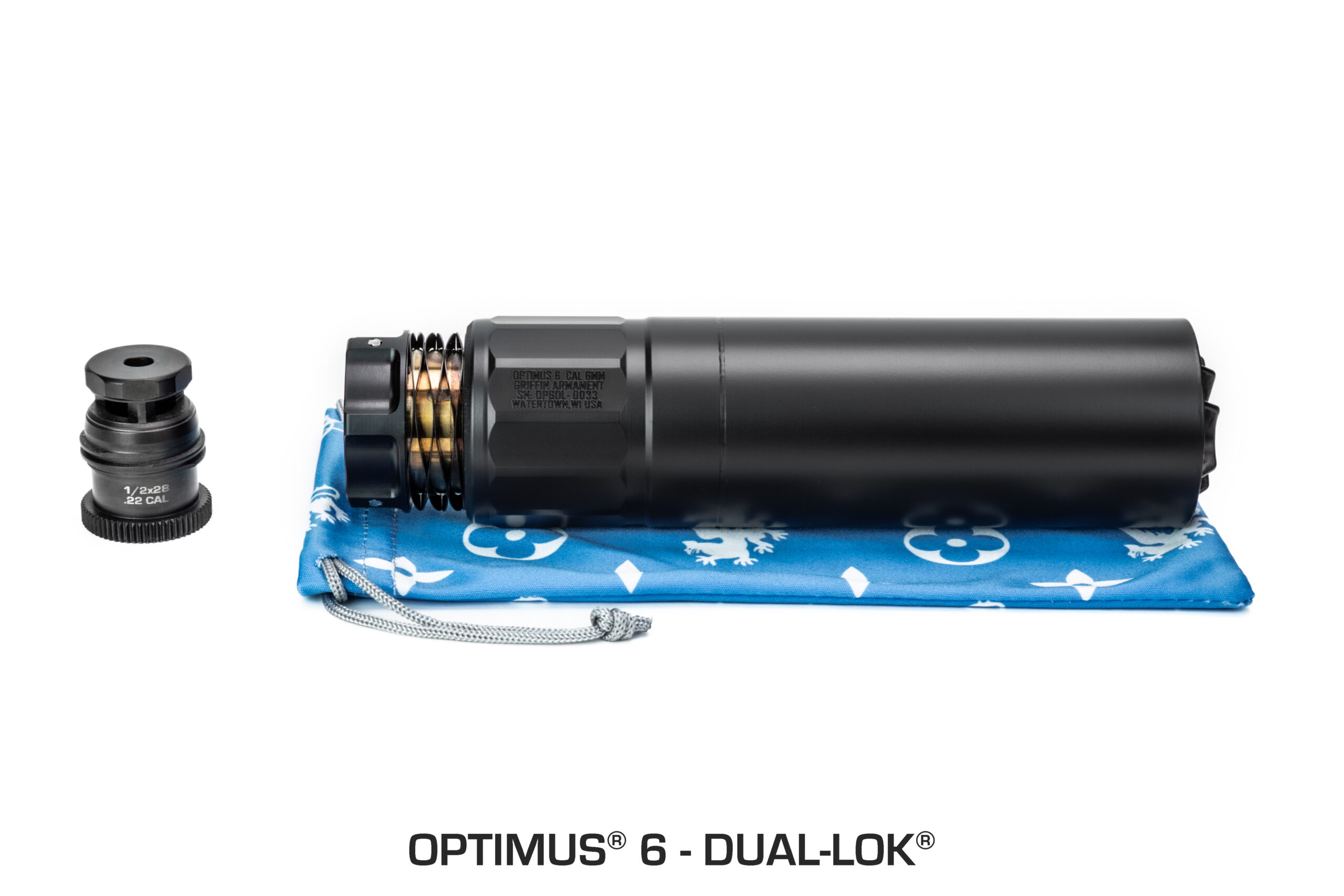

DUAL-LOK® Model:

Overall Length: 6.68″
Weight: 17.2 oz

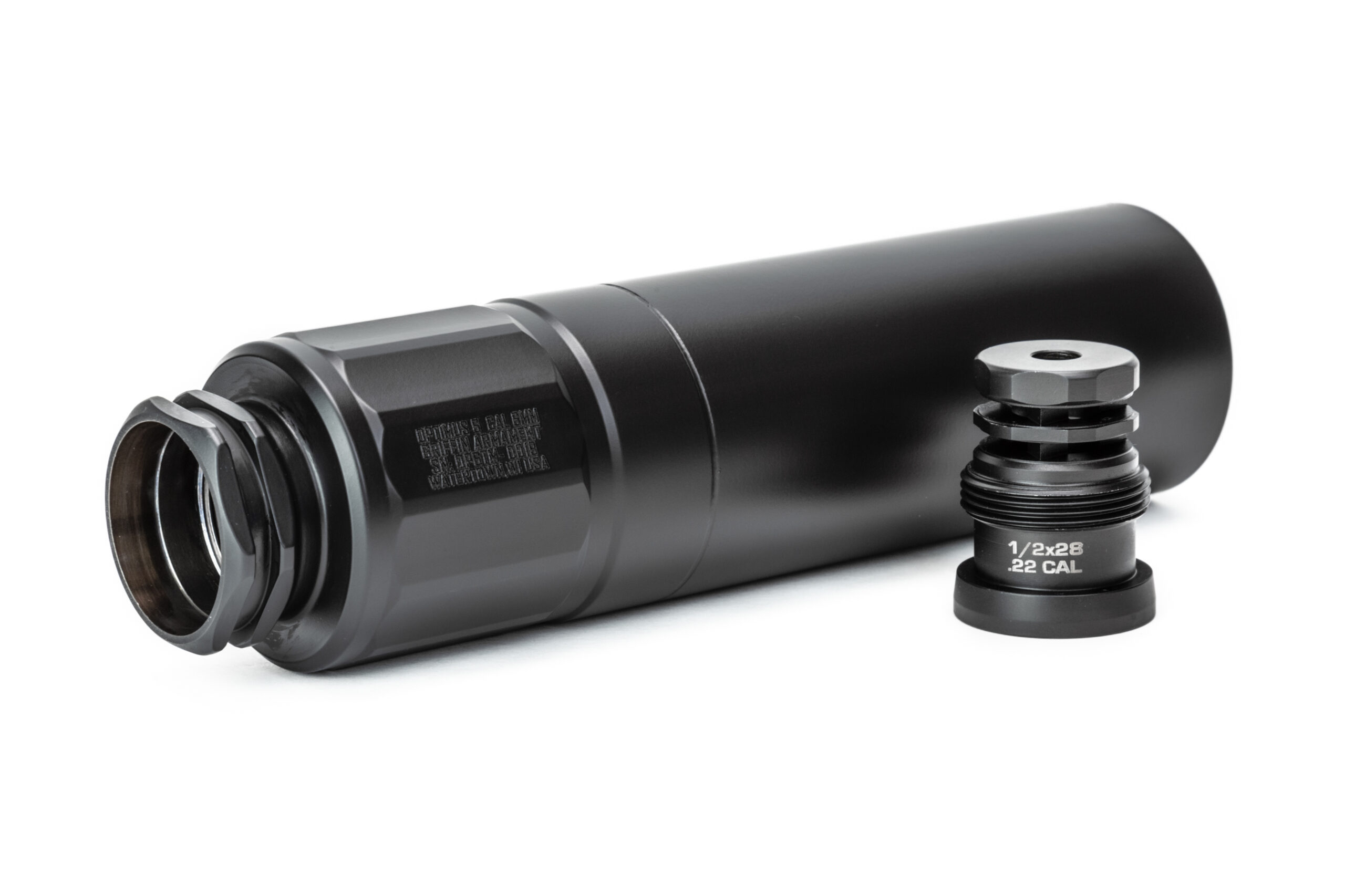

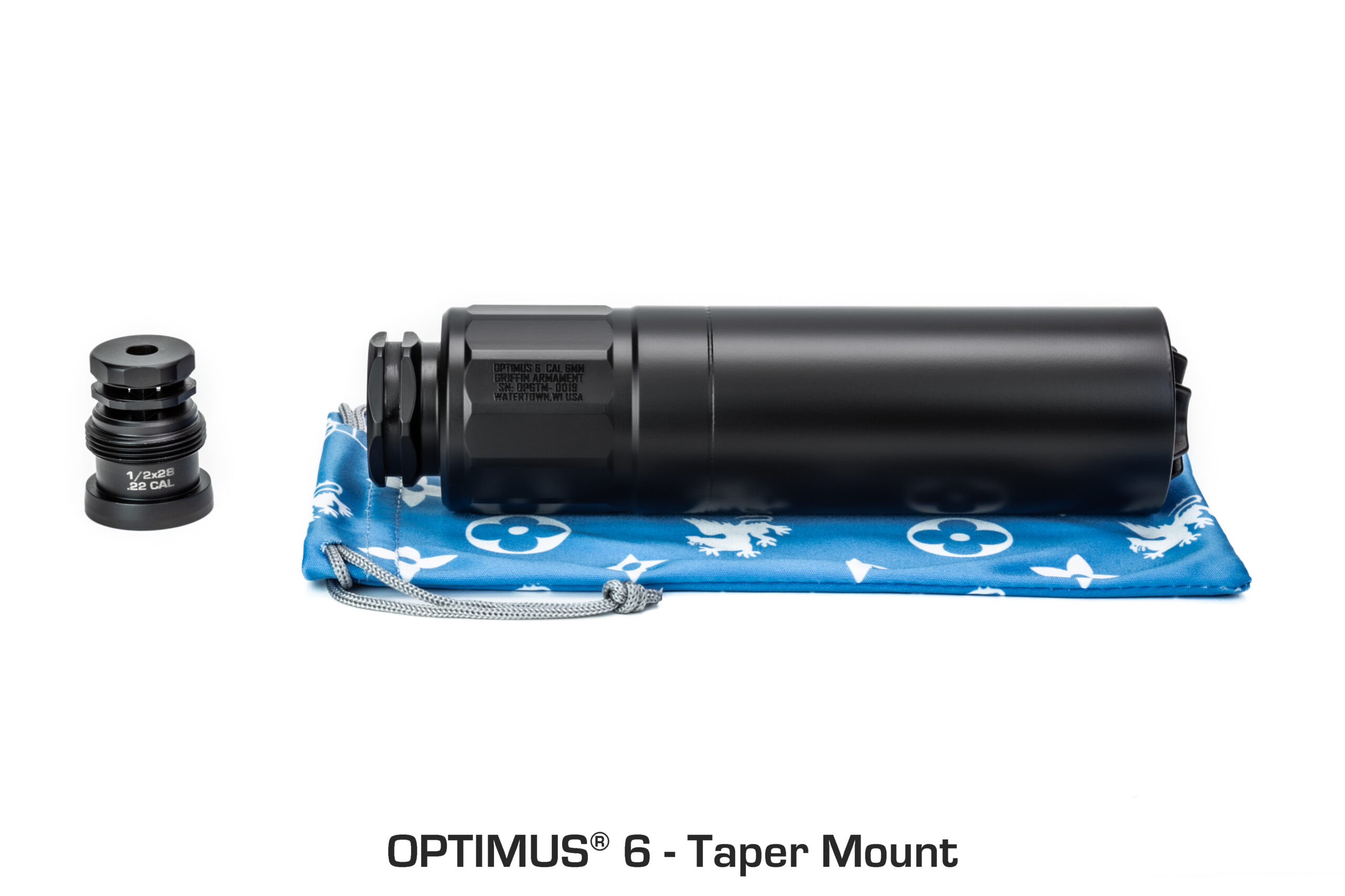

Taper Mount Model:

Overall Length: 6.59″
Weight: 16.5 oz

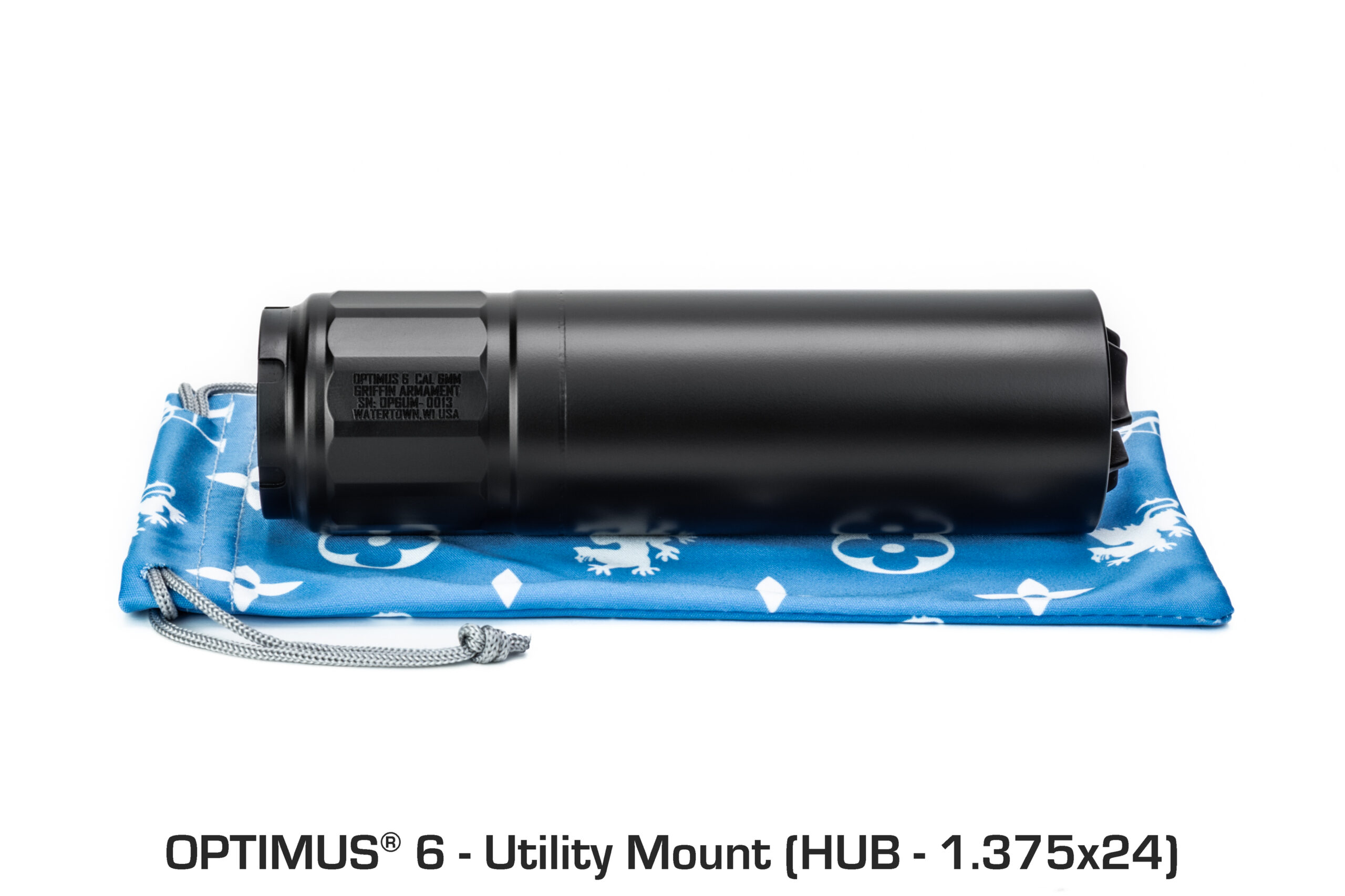

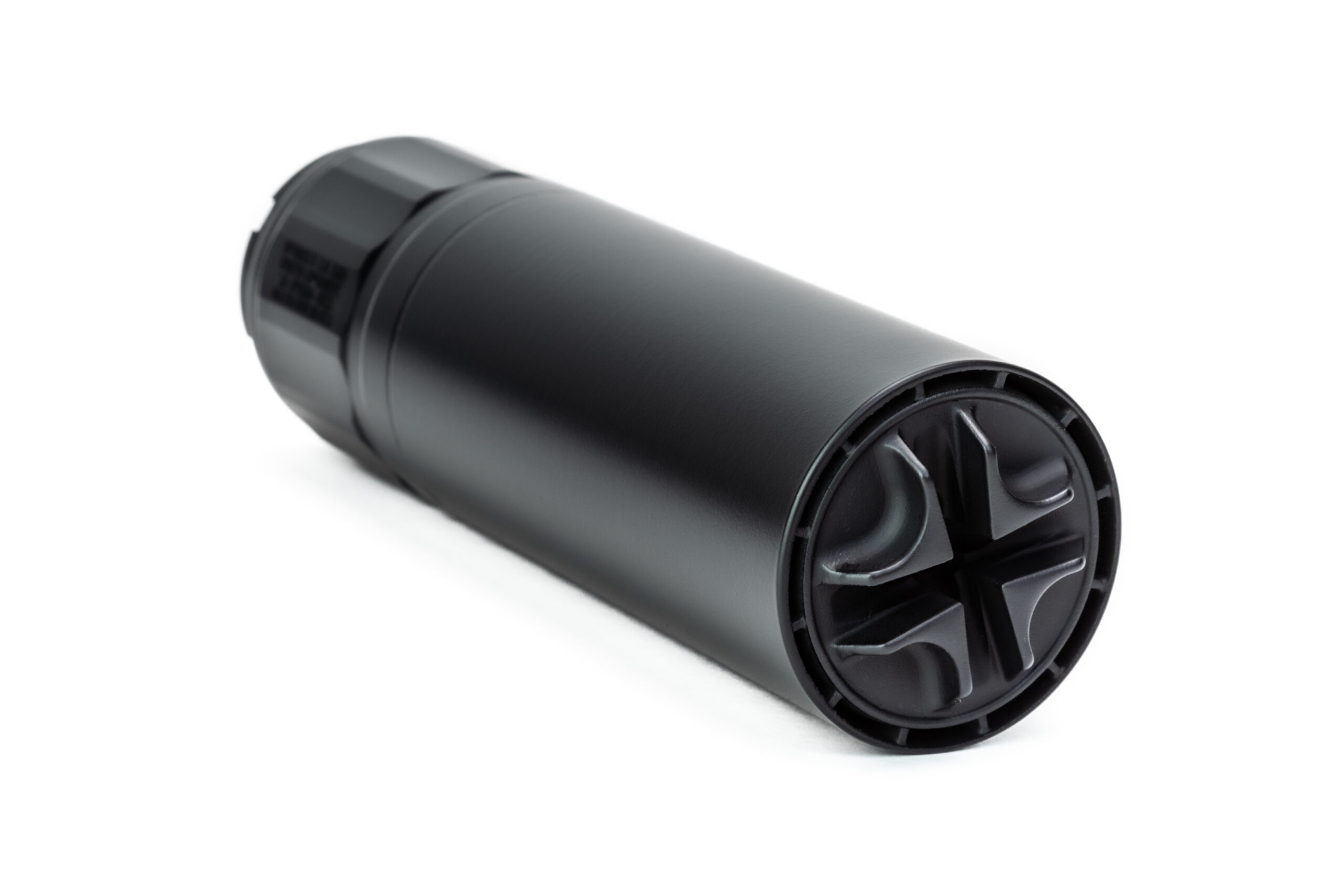

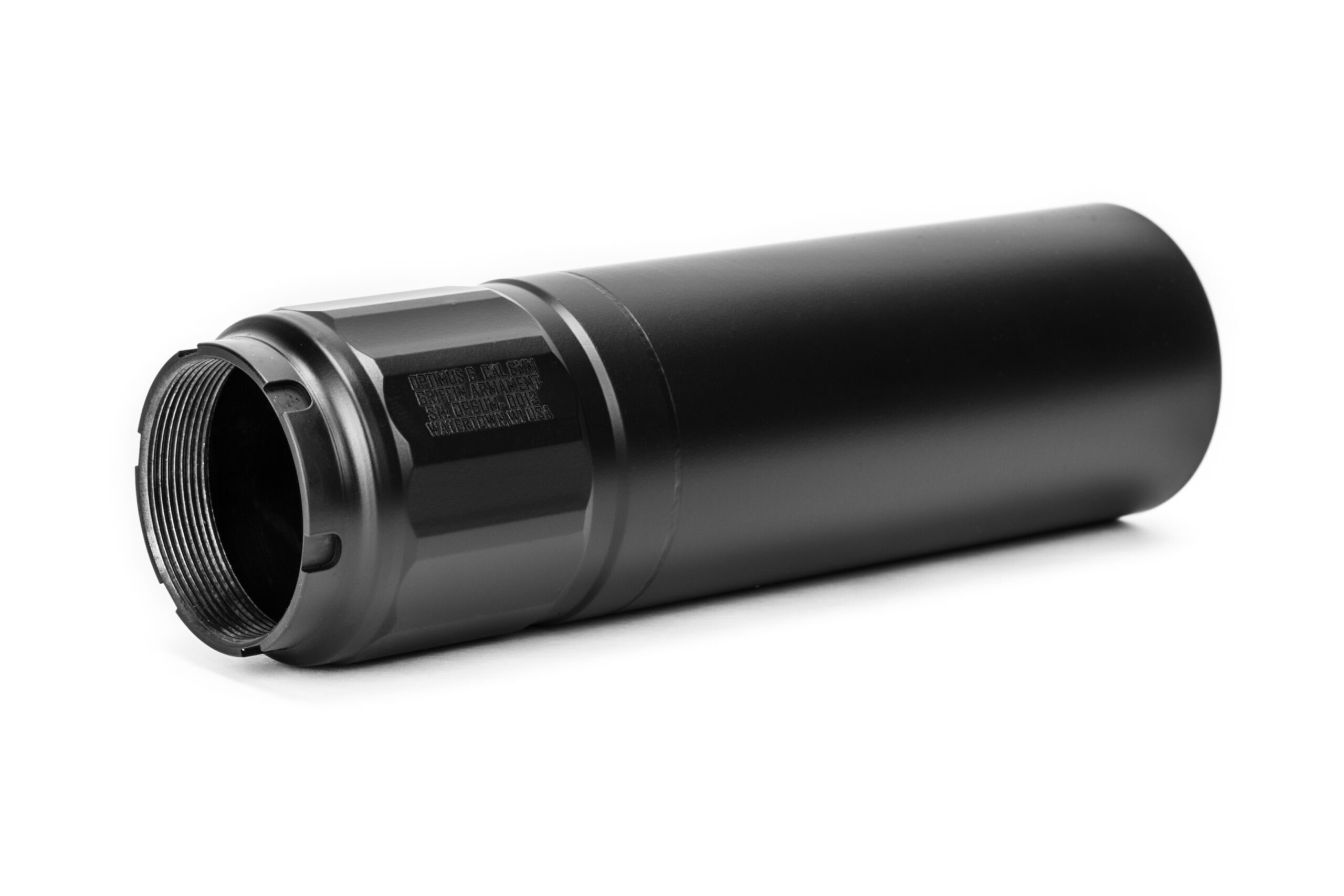

Utility Mount (HUB) Model:

Overall Length: 6.02″
Weight: 15.2 oz

MANUAL

• CLICK HERE FOR MANUAL
