HUB HRT-556 AM Silencer

Description

The HUB HRT-556™ AM Silencer is a highly durable, ultra low backpressure 5.56mm HUB-compatible suppressor constructed from Griffin’s proprietary Nickel 625X™ powder alloy utilizing state-of-the-art DMLS additive manufacturing technology. This iteration of the HRT-556 Silencer shifts priorities to deliver an ultra low backpressure unit optimized for hard use while offering high levels of sound and flash reduction performance. Left handed shooters will benefit from the very low backpressure system as well as right handed shooters.

These silencers utilize the industry-standard HUB threaded rear (1.375×24 TPI) allowing the end user to configure their suppressor with any of Griffin’s HUB mount adapters, or other manufacturer’s inserts.

The proprietary, patent-pending Nickel 625X™ superalloy showed in testing a ~68% increase in yield and tensile strength over additively manufactured INCONEL® 625 at 1200°F.  INCONEL® 625 is a commonly used suppressor alloy in current next generation military suppressors.  Additively manufactured Nickel 625X™ is stronger at 1472°F than INCONEL® 625 cold formed sheet material at room temperature.  INCONEL® 625 cold formed material provided adequate service in the last several decades of military suppressors.

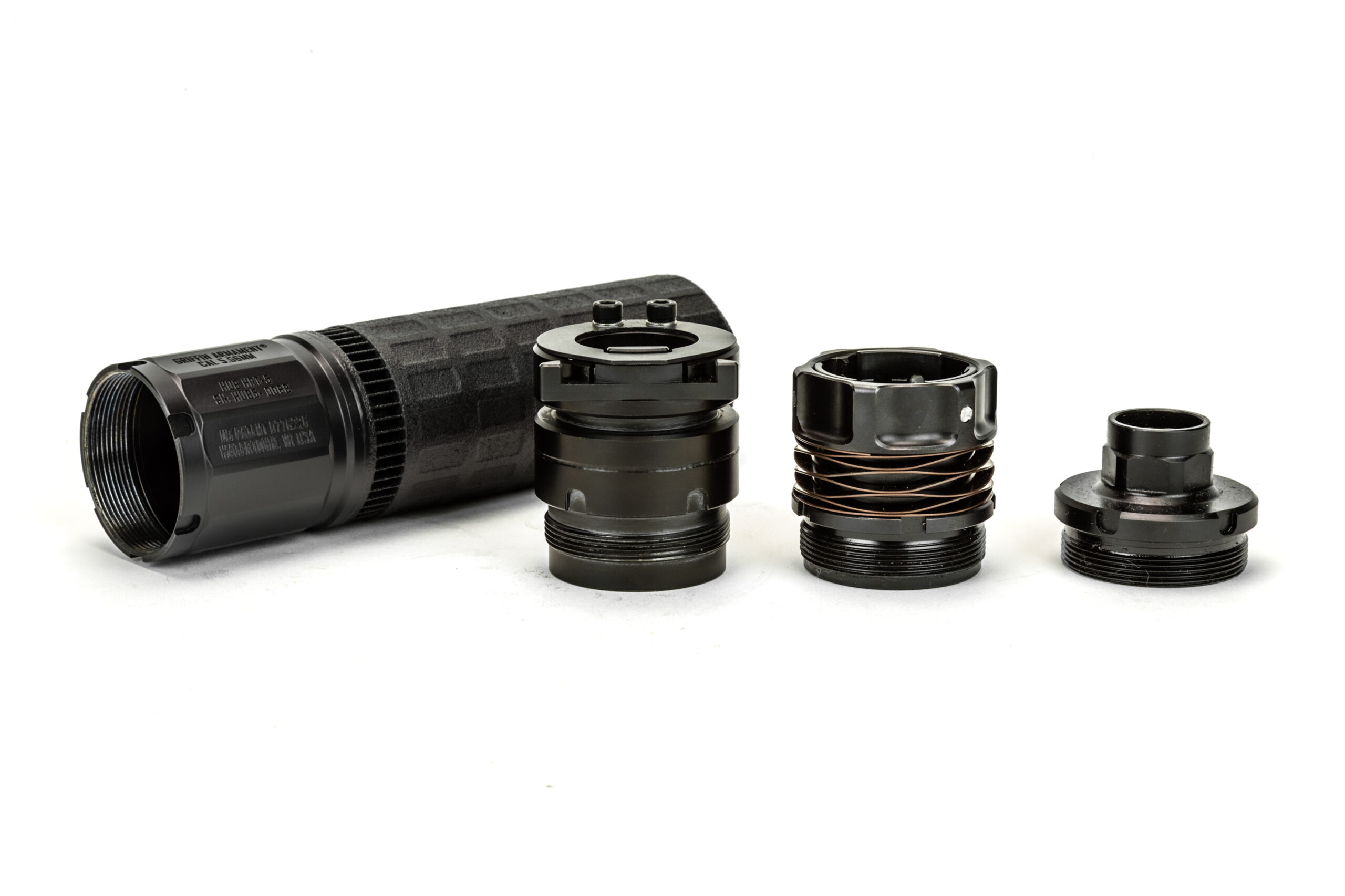

Mounting Options Available

Note: Griffin’s HUB Mount Silencers do NOT ship with a muzzle device, or HUB Mount Interface. If desired, a HUB Mount can be added to your order using the buttons above.

• Direct Thread HUB Adapter (5/8×24 or 1/2×28)

• PLAN-A™ Short Taper Mount HUB Adapter

Compatible with Taper Mount EZ-Brake and Minimalist Brake ONLY

• PLAN-A™ Long Taper Mount HUB Adapter

Compatible with ALL Taper Mount Muzzle Devices, except the 2.75″ Flash Hider and Bayonet OTB Flash Hider

• A2 HUB Mount Interface

Compatible with most mil-spec Colt-pattern A2 birdcages & ALL GATE-LOK™ Muzzle Devices

• GATE-LOK™ HUB Mount Interface

Compatible with most mil-spec Colt-pattern A2 birdcages & ALL GATE-LOK™ Muzzle Devices

• DUAL-LOK™ HUB Mount Interface

Compatible with ALL DUAL-LOK® Muzzle Devices (Excluding: Over-the-Barrel PSR™ Muzzle Devices and OTB Bayonet Open Tine Flash Hider)

Features

• Integrated HUB Mounting Thread (1.375×24 TPI)
• Extreme Low Backpressure Suppressor System

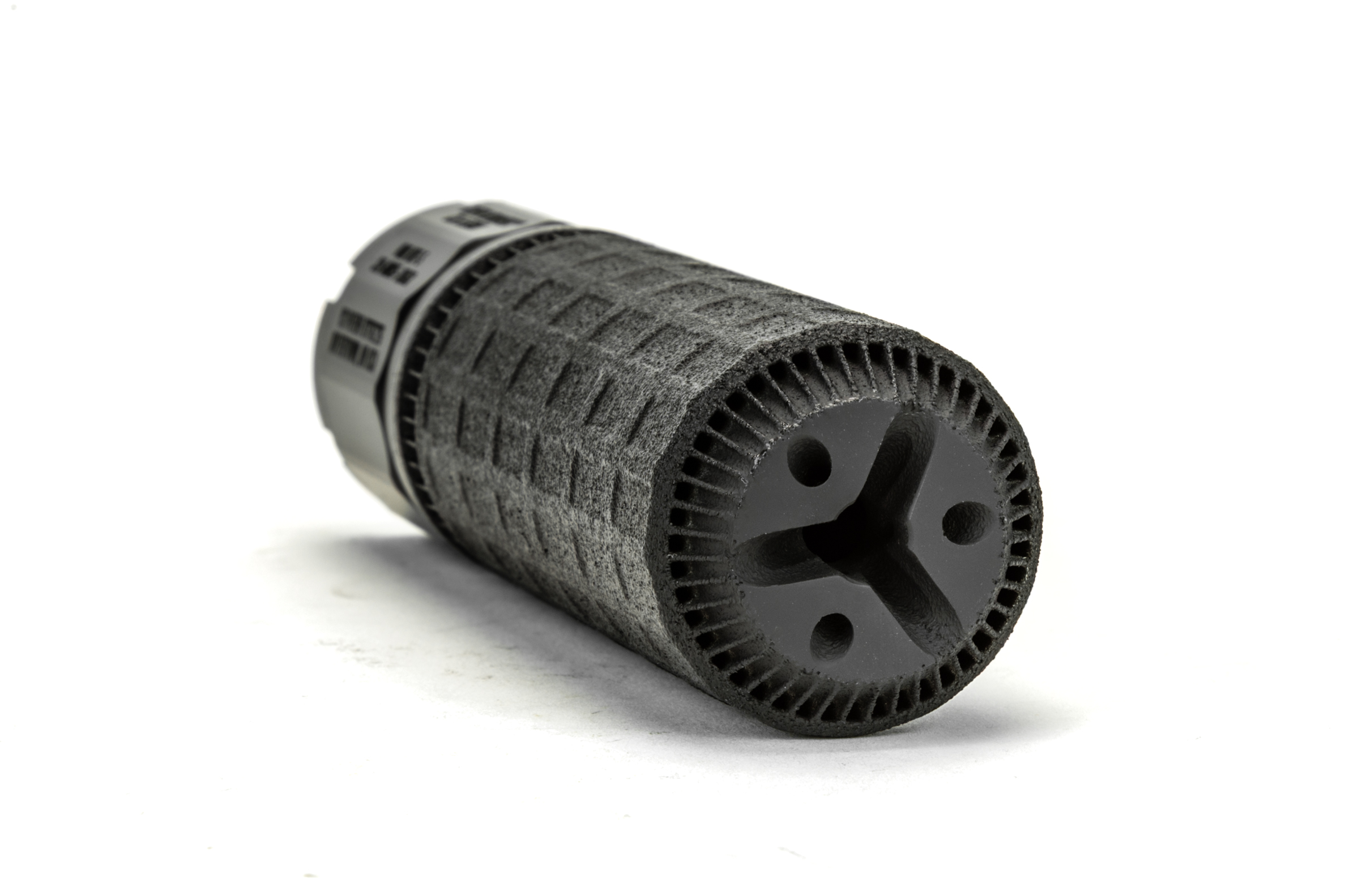

• Additive Manufactured Ultra Durable Nickel 625X™ Superalloy Core
• Printed Core Laser-Welded to Machined Rear for Warranty Serviceability
• High Performance Flash Hider End Cap
• Highly Accurate with Minimal POI Shift
• Perpetual Lifetime Warranty™

What’s in the Box

• HUB HRT-556™ AM UltrLow Backpressure Silencer (.22cal)

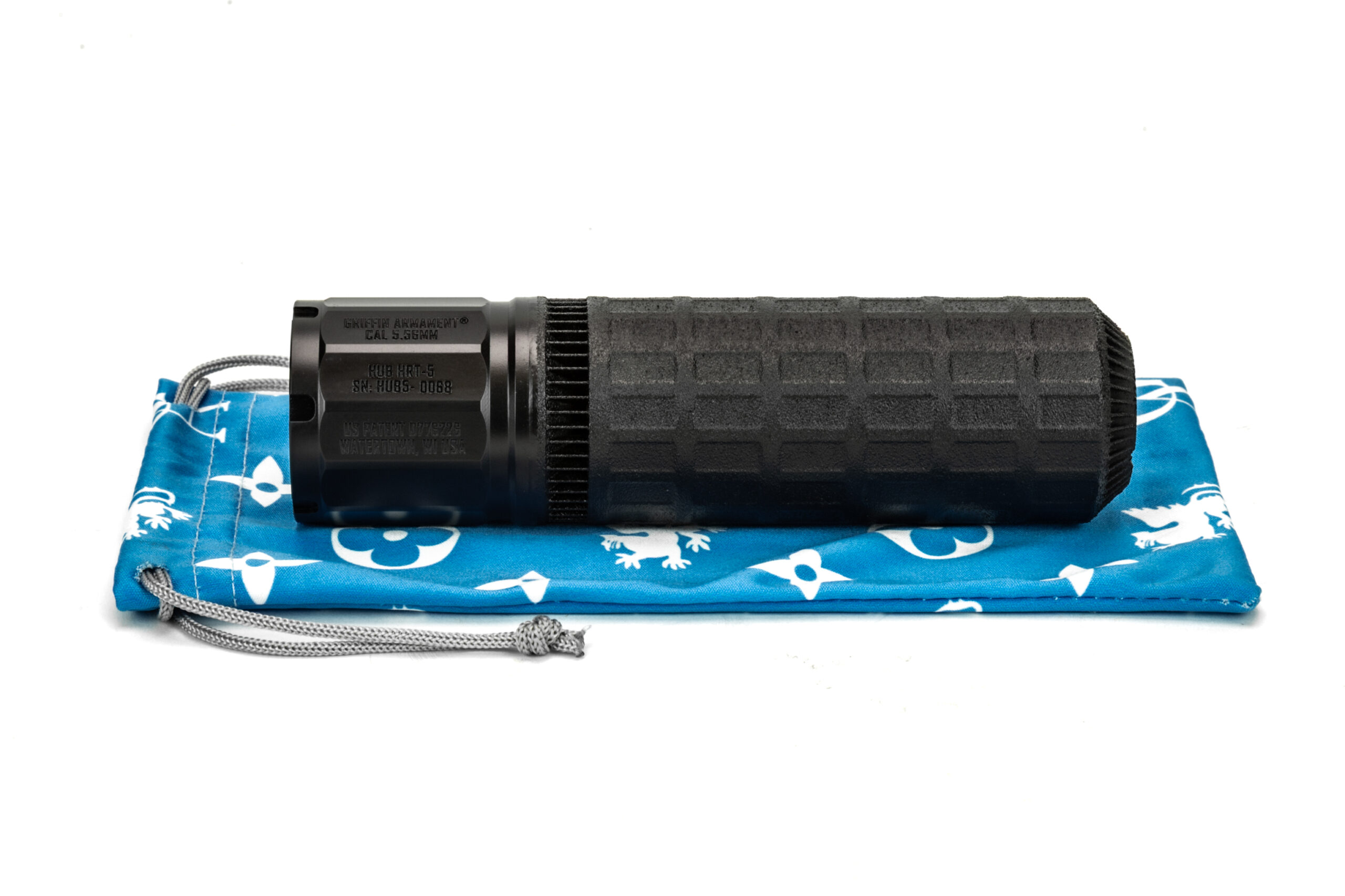

• Branded Griffin Silencer Pouch

AVAILABLE MAINTENANCE ITEMS:

• DUAL-LOK® Wrench
• Griffin Bushwhacker Wrench
• Mount Adapter Driver
• Cleaning Brushes
• ST-3 Thread Sealant
• High Temp 2300 degree Anti Seize
• Alignment Rods (to verify proper installation)

Digital Manual

• CLICK HERE FOR MANUAL

Ratings & Restrictions

• DUAL-LOK® Suppressors do not have minimum barrel length restrictions or constraints for rifle calibers. While longer barrels promote longer service life, there are no barrel length restrictions with this suppressor!

INCONEL® is a registered trademark of Special Metals Corporation. Griffin Armament has no affiliation with Special Metals Corporation, and the use of “INCONEL®” is in this document is only for purposes of comparison between materials.
