Description

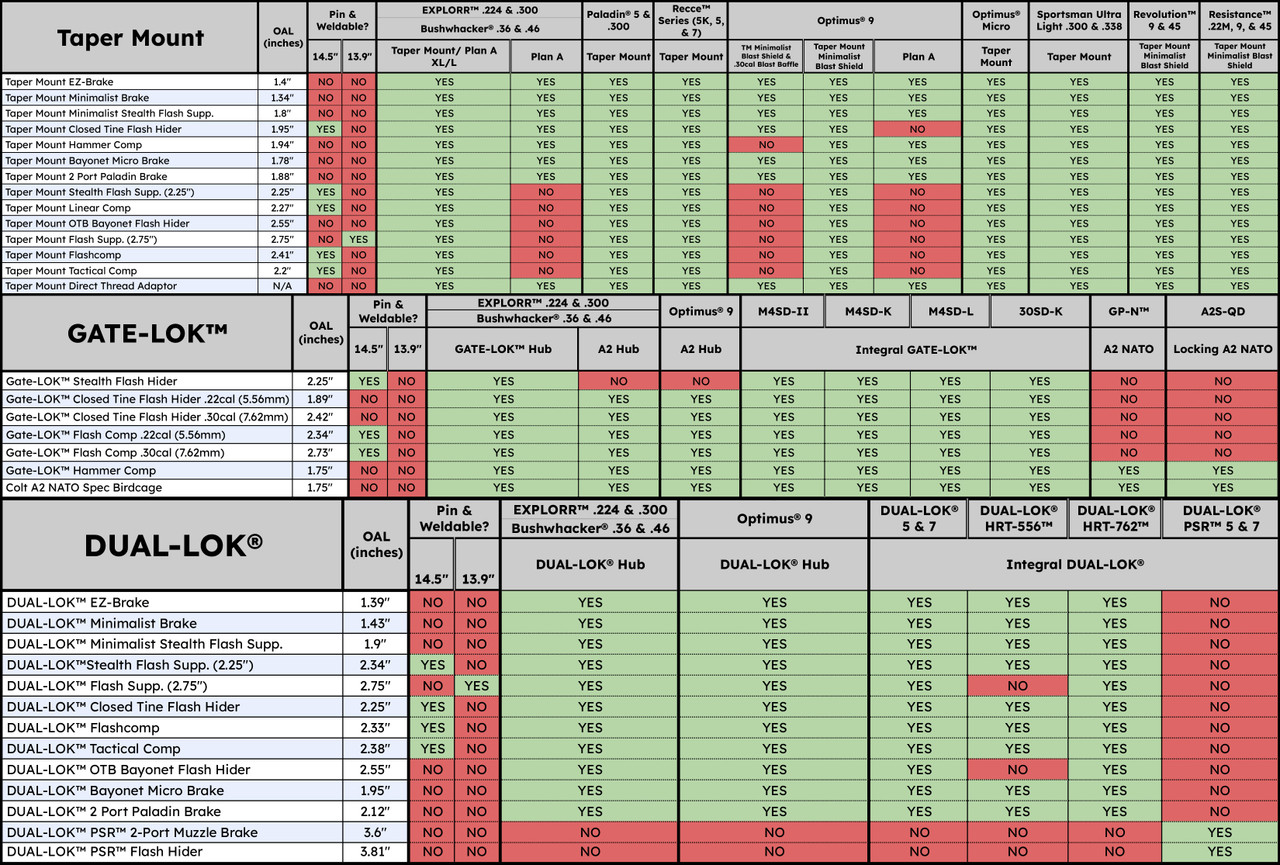

The Griffin Armament taper mount muzzle devices interface with our taper mounted suppressor (RECCE, PALADIN®, EXPLORR®, Sportsman, Optimus®). To be compatible with the Optimus® 9, THE BLAST BAFFLE MUST BE REMOVED.

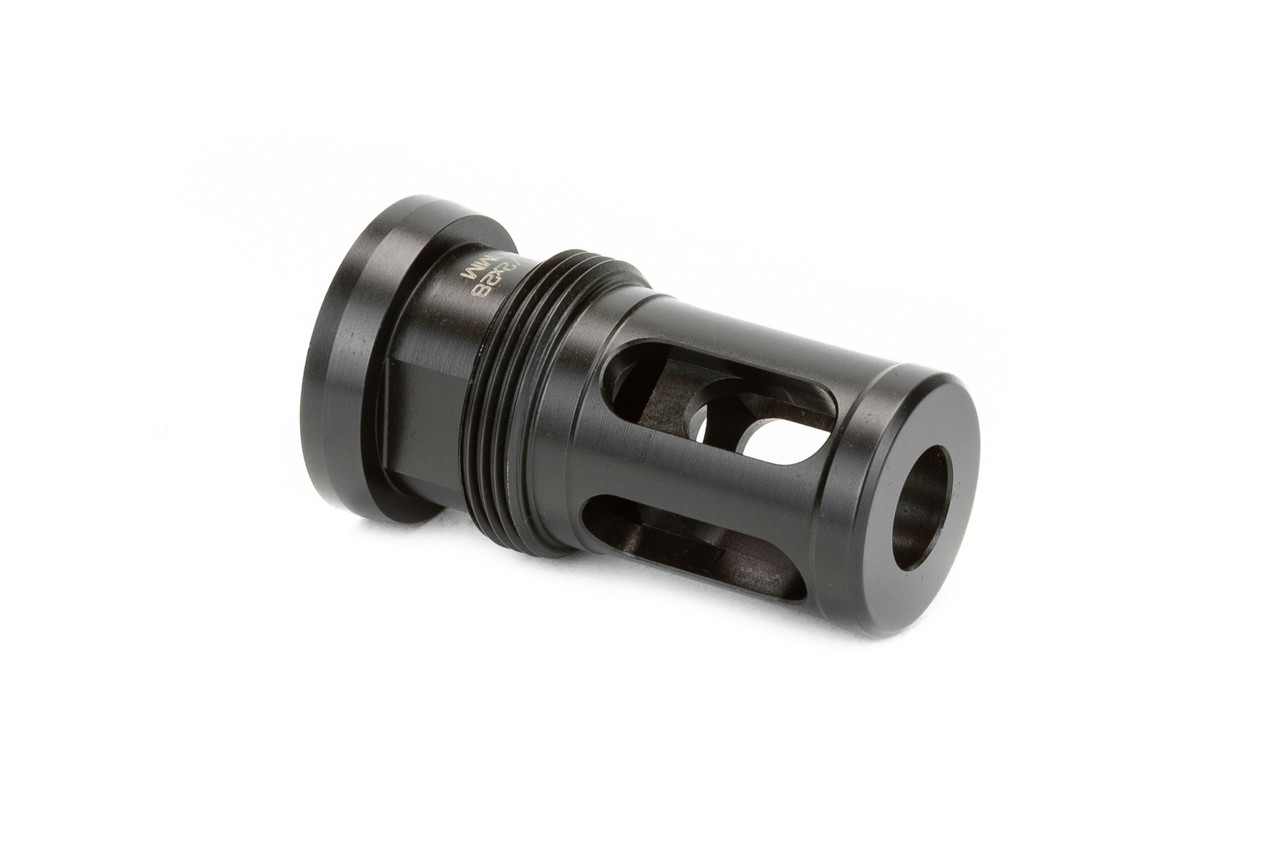

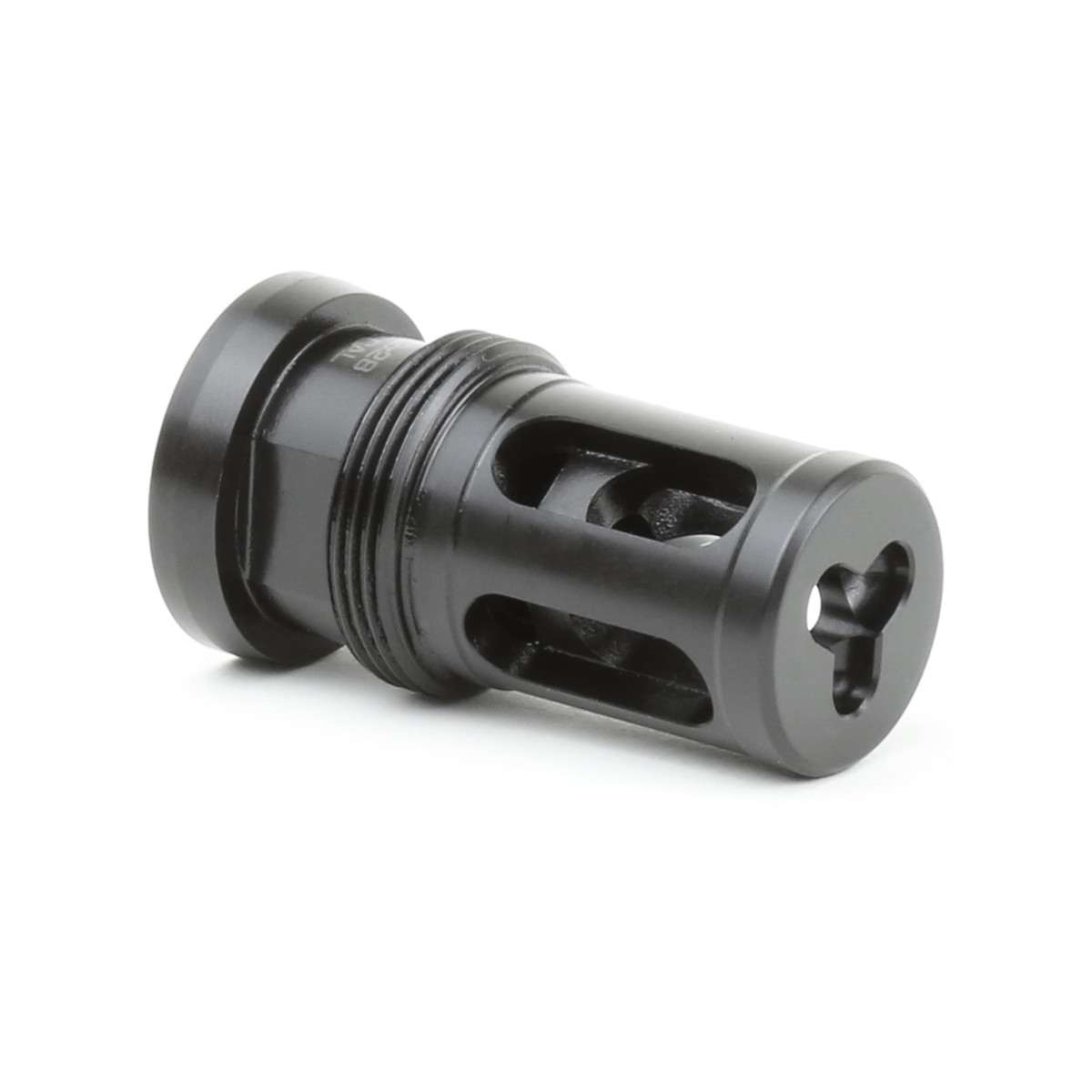

The Taper Mount Hammer Comp provides 2 sacrificial baffles that reduce recoil and ensure maximum service life of your suppressor. Slotted compensating features provide tuned muzzle stability. CNC machined from a solid bar of heat treated 17-4ph stainless steel, the Taper Mount Hammer Comp is built to last.
This muzzle device is 1.89″ length from the countersunk thread shoulder to the front face, and is = length to an A2 flash suppressor with .14″ thick crush washer, so it can be used in conjunction with so called “14.7” barrels which are marketed as able to be permed to 16.1″ non NFA length using an A2 and crush washer. The actual barrel length 14.835″ will bring this device and crush washer mounted A2’s to ~16.1″ breech face to forward surface of permed barrel assembly. Taper Mount Thread Protector is compatible with this muzzle device for added protection of thread mounts.
Includes shim set.
| Diameter: | 1.08″ |
| OAL: | 1.94″ |
| Weight: | 3 ounces |
| Materials: | 17-4PH Stainless Steel |
| Finish: | QPQ |

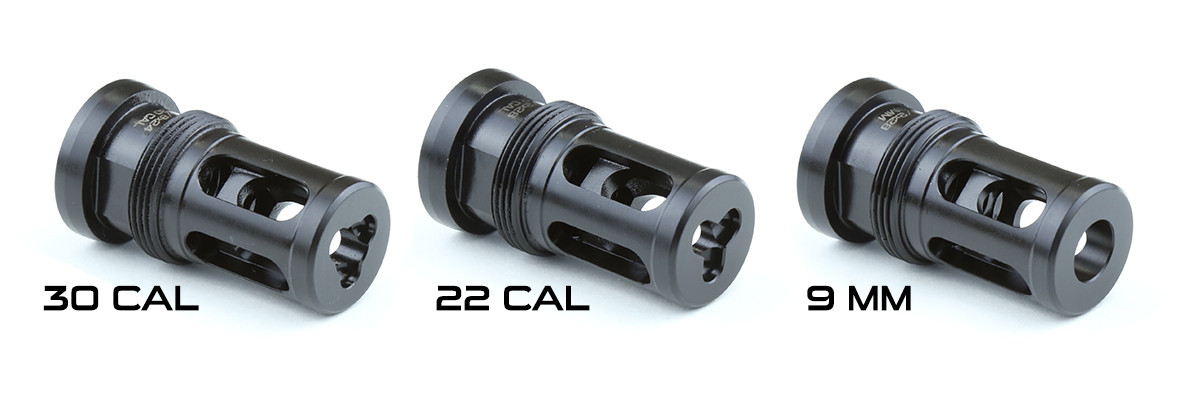

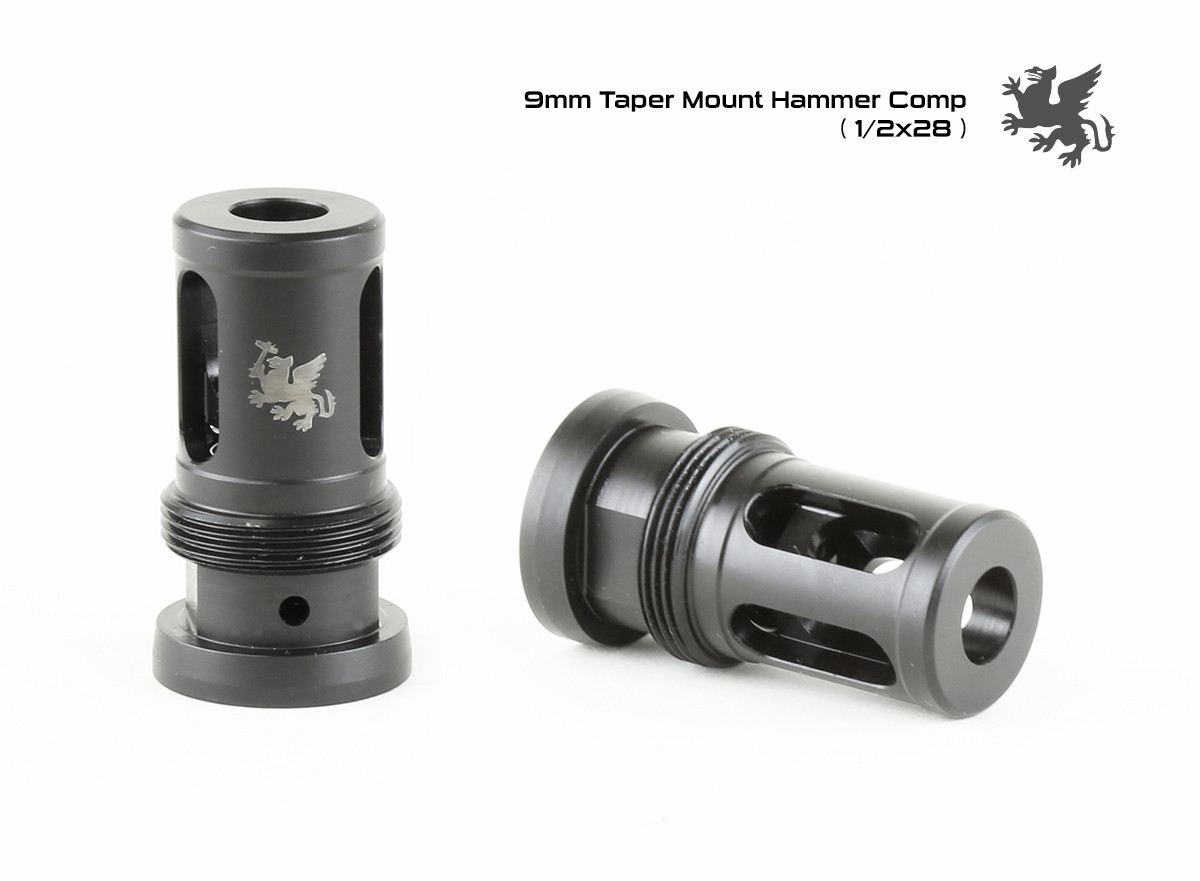

| Attachment: | 1/2×28 Thread (.22 CAL & 9mm ), 5/8×24 (30 cal) |
Jason Yma –
Ok, so you have an sbr/pistol. Taper mounts are key with the optimus silencer. I have the flash comp 556, single break 300blk & 556, double break taper mount I use for 6.5 creedmore. The hammer comp for the 1/2×28 is a godsend. Flat shooting out a 10.5 & 11.5 with low concussion. This is the best taper mount IMO. Buy 2… you never know, and they are not easy to come by (waited a year). Thanks Evan and Austin for great products.
Daniel Pepper –
DG –
Fit and finish are excellent; design does a great job with SBRs’ and pistols like the other reviewer pointed out.
Jared –
Purchased the Taper Mount Hammer Comp muzzle device and Thread Protector for my AR 15 build directly from Griffin Armament. Product was shipped within 48 hours, arrived on time and as described. Had a gunsmith pin and weld this compensator on a Faxon Firearms barrel and was pleased with the final fit and finish. After a trip to the range, was satisfied with the level of flash suppression. So far so good…planning to purchase the Optimus suppressor to go on it in the near future.
Gary (verified owner) –
Works well with my suppressor and looks good.
Aaron –
Works to reduce recoil, and looks good while at it. Now all they need is to offer it in 1/2 x 36 for the rest of the 9mm crowd.
Steven Wright –
As always quality product and free delivery to my home in less than a week.
Tad Howard –
Works great!!! Fits suppressor nicely. Huge fan of griffin products!!
James Proctor –
Haven’t got a chance to install it yet but looks really well made. You can tell its quality.
Frederick –
I love this comp. It has the look of a VG6 with the great taper mount of Griffin. I replaced my minimalist with this because it is more sacrificial than the minimalist which should help with the supressor report and life.
William Green –
Great item for use on my AR Love the way it works with my Griffin Optimus
Bill Green –
Very nice fit. Took a couple of try’s to get it aligned but works great. I would recommend this item
Matthew –
Got this for a form1 can using a titanium adapter. Fits like a charm and looks amazing, wish the thread protector was still included though. Had to pay $16 to add it. Still, love these taper mounts!
Greg Thompson –
Purchased this taper mount at the suggestion of Griffin Cust Svc to be used with my Ruger American in 350 Legend. As always with Griffin Armament products, the machining is perfection and it fits like a glove. Griffin’s Customer Service has been extremely helpful in answering all my rookie questions in trying to set up & use my new Optimus silencer. My first silencer, and they have gone to extremes to help me choose the right accessories for all the guns I want to use it with.
Glyn –
Excellent product top quality
Glyn Andrews –
Like most things from Griffin excellent product
christopher –
Looks cool and does the job! Shims are a nice touch.
Nando Cuccurese –
Watched video. Real easy no problem. Took about 1 minute to complete install. I did not give it 5 stars because I did not have the time to go out and shoot. Will update later.
Andy –
Arrived at my door quickly. Great fit and finish, does exactly what it’s supposed to do. Great job Griffin
Daryl –
I have owned the Optimus suppressor for a few years now and I am still very impressed with the versatility of it. It works as great on the AR15 or the .308 bolt gun, I have multiple taper mounts and I think this one it the best fit and function of them all.
Anonymous –
Great quality and machining. Excellent customer service. Happy to do business with Griffen Armament
Aaron MCFARLAND –
Excellent quality. Looks amazing. Taper mount is my new favorite.
Fybur Makesmego –
My second muzzle device from Griffin, both are exceptionally well machined. Finish is perfect, fit is perfect. I’m switching all my mounts over to Griffin.
Janvier Palo –
NA
michel montana –
HI
ON MY M11 IS THE TOP!!
Matt –
I’ve purchased 3 of these muzzle devices. They are great. You can’t go wrong with it.
Great Comp! –
I love the make and feel of the comp. It comes with lots of shims so getting it installed perfectly aligned is a breeze. The finish looks good and durable.
Captare Swafford –
Fits perfectly and even looks great!
B377 –
This is not my first Griffin muzzle device. The machine quality and finish are excellent. I’m planning to mount a Recce 5 on the build I’m working on, so I wanted to use the taper mount version of the device on my current rifle. Griffin is never a disappointment
William Sayer –
I wish this was the same price as the EZ Brake cause its flipping amazing. This should be mandatory hardware for the mid length design.
Ben –
Bought this for an aero m5 build. Install was simple, aligned perfectly, looks and performs great, and the sacrificial baffles give me peace of mind.
Norm –
Perfect size and functionality. It also does a decent job with compensating. I am also mounting a Recce5 on this device. Works well!
Anonymous –
I like the simplicity and effectiveness of the tapermount system and this compensator / brake works really well, with and without a can. It keeps the muzzle flat without excessive concussion. Kind of does the work of a brake and flash dissapator at the same time.
JG –
The quality control on this is immaculate! Griffin Armament definitely has my future business.
Anonymous –
Love these muzzle devices and the Flash Hider. Use these on all my rifles & pistols
Michael Auton –
Looks like a winner, have not had chance to shoot yet but installed day after receiving by my gunsmith. Fits like a glove and seamless with my suppressor.
James P –
Can’t say enough about Griffin quality. More than pleased with everything from them. The list continues to grow.
