Revolution® 9 (MOD 4) Silencer

Description

The original Revolution® 9 & 45 suppressors were the first pistol silencers developed and brought to market with a modular length feature set, and that Griffin innovation inspired all the other modular length pistol suppressors in the US marketplace.  The (MOD 4) Revolution® 9 suppressor represents a total redesign around of package of end user feature interaction enhancements, making the suppressor more secure and easier to mount, as well as fast and easy to configure in length, and easy to disassemble, at vastly increased maintenance intervals. The forward extension allows tool-less reconfiguration, and the O-ring biased extension and front cap prevent inadvertent loosening of the extension or cap. The booster housing (mount accessory interface socket) is permanently installed so tightening and loosening the suppressor does not result in loosening of the booster housing. The housing accepts pistons, fixed barrel mounts and spacers, our Griffin developed industry first integrated 3 lug mount, as well as Plan A mounts.

Note: Attempted removal of the booster housing may result in damage to the internal threads of the suppressor, booster housing, or both; and is not recommended. We make a variety of interfaces that connect to the booster housing itself, so removal is unneeded to support the various mounting methods listed below.

Another major improvement introduced in the MOD 4 generation is the incorporation of Griffin’s patented CARBON-GARD™ baffle technology. This concept, originally debuted in the Checkmate HD suppressor, has applications for pistol suppressors to make cleaning and maintenance of the suppressor easier even after very high round counts. High temp silicon o-rings are positioned at each baffle interface as well as the end cap, blast chamber, and extension tubes to fully seal gases and carbon within the baffle stack. This gas seal prevents lead and carbon fouling from building up between the tube body and the baffle stack, eliminating instances of the baffle core being carbon locked inside of the tube body, a condition that is very annoying for the end user.

Revolution® MOD 4 Suppressors ship with an included EZ-LOK™ piston providing a more secure, and rapid mounting system than direct thread. EZ-LOK™ barrel end adapters are available for purchase separately. (Note: to use the EZ-LOK™ piston included with your silencer, you will need to purchase an EZ-LOK™ barrel adapter to install on your host firearm. You can purchase one with the silencer using the buttons above during the add to cart process) We highly recommend utilizing the EZ-LOK™ system to mitigate chances of baffle strikes or catastrophic failure due to the can inadvertently coming loose. Best practice is to check your pistol suppressor for tightness every 1-3, 15 round magazines due to the excessive vibration inherent to tilt-barrel handguns.  In the event the end user desires to use a legacy direct thread piston (available separately), the best practice is to check tighten the suppressor every 2-3 rounds fired.  It goes without saying that a 15 fold or greater enhancement in mounting security is a phenomenal improvement to pistol suppressors.

Available mounting systems compatible with the integrated booster housing:

• 3-Lug Interface Kit (Installs into the booster replacing piston and piston spring)
• Taper Mount Interface 1.125×28 (Replaces retaining nut in booster housing to accept Taper Mount muzzle devices)
• Fixed barrel mounts
• Fixed barrel spacer (replaces booster piston spring with spacer and uses EZ-LOK adapters)
• Fixed 1.125″ EZ LOK mount adapter (Replaces piston, spring, and piston retainer)

FEATURES

• 17-4 H900 Heat Treated Stainless Steel Baffles
• 7075-T6 Aluminum tube body/end cap construction

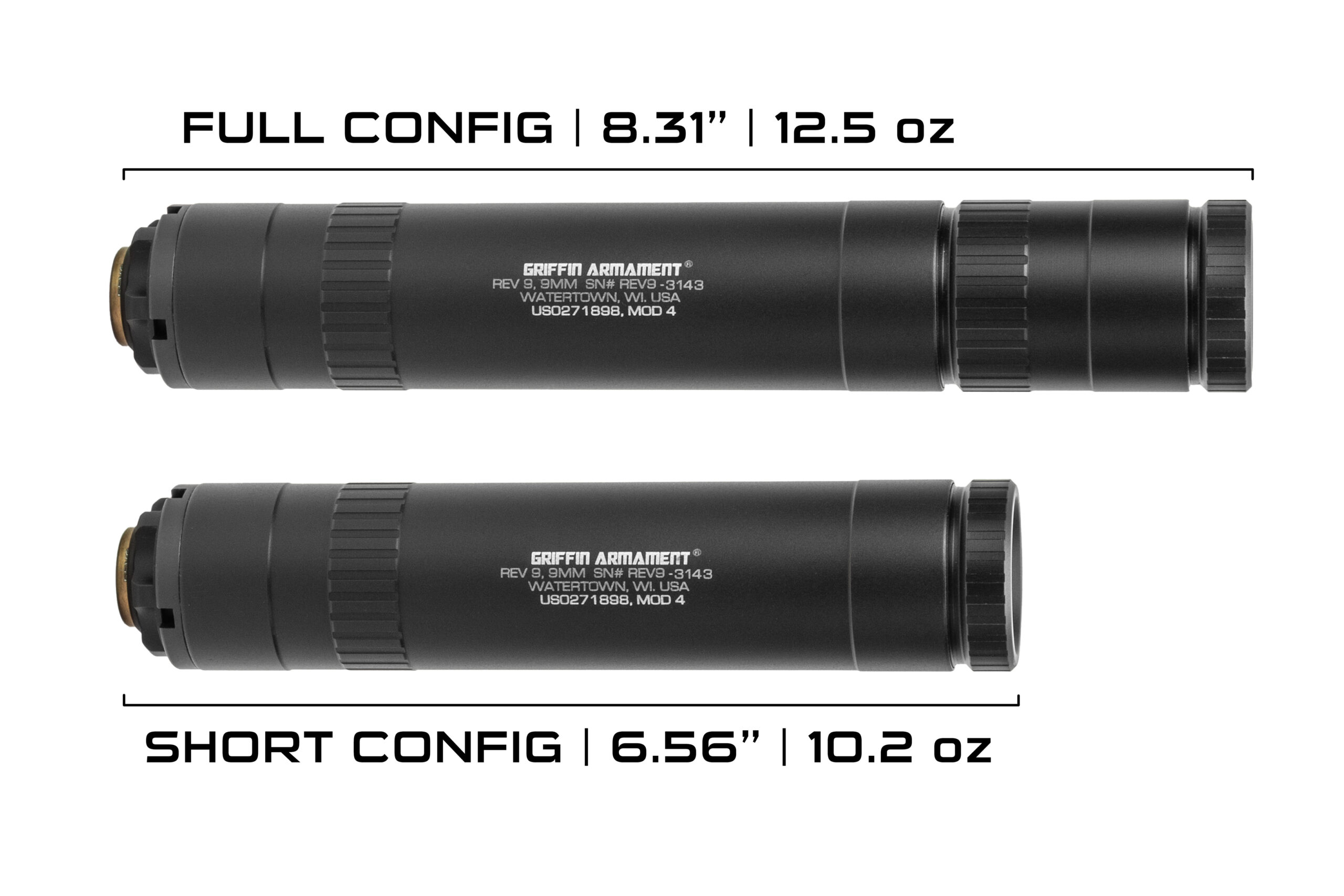

• Modular Length
• Tool-less Disassembly
• CARBON-GARD™ Sealed Baffle Tech
• ECO-FLOW™ Backpressure-Reducing Baffle Tech
• EZ-LOK™ Piston and Booster Assembly included
• Perpetual Lifetime Warranty™

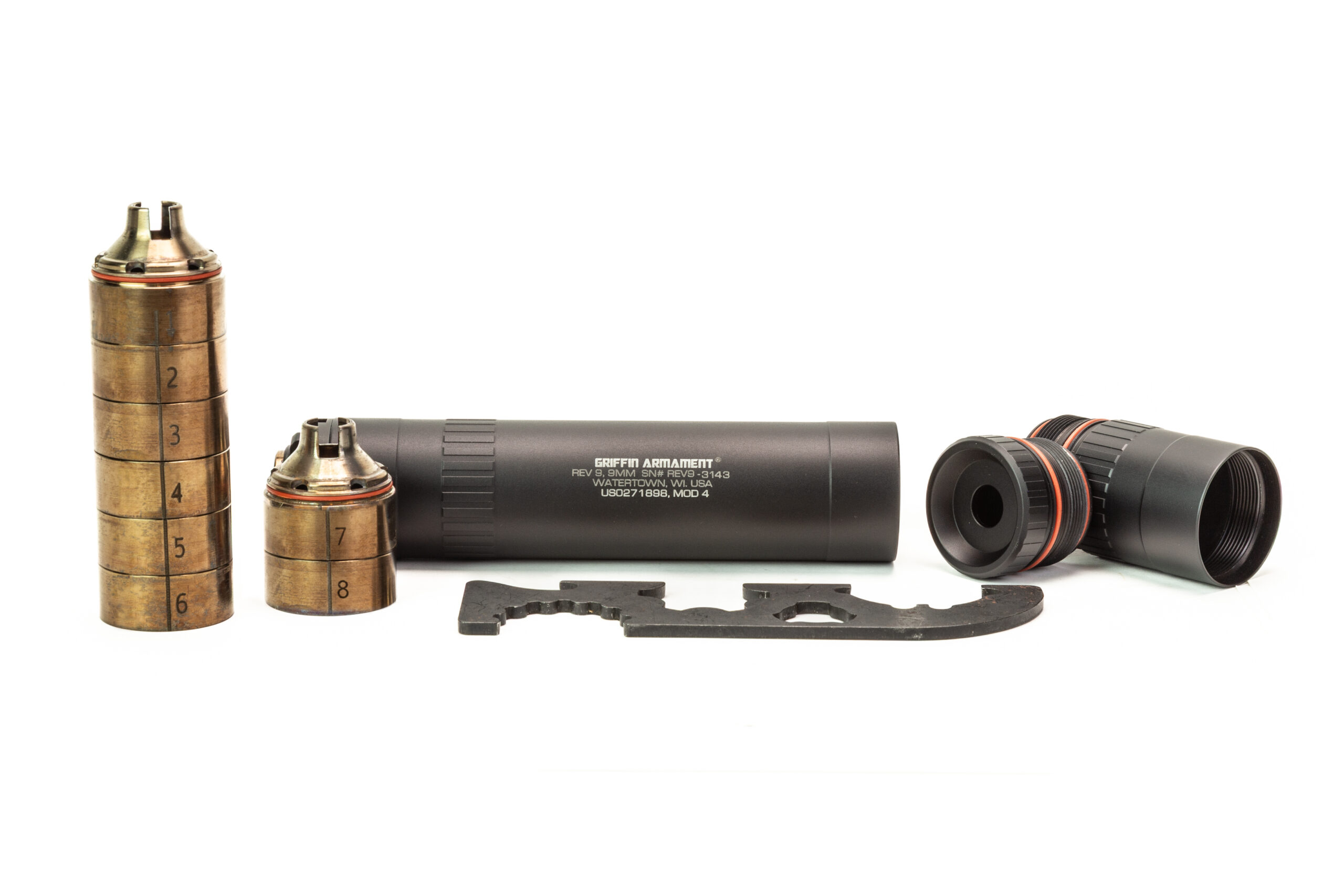

WHAT’S IN THE BOX?

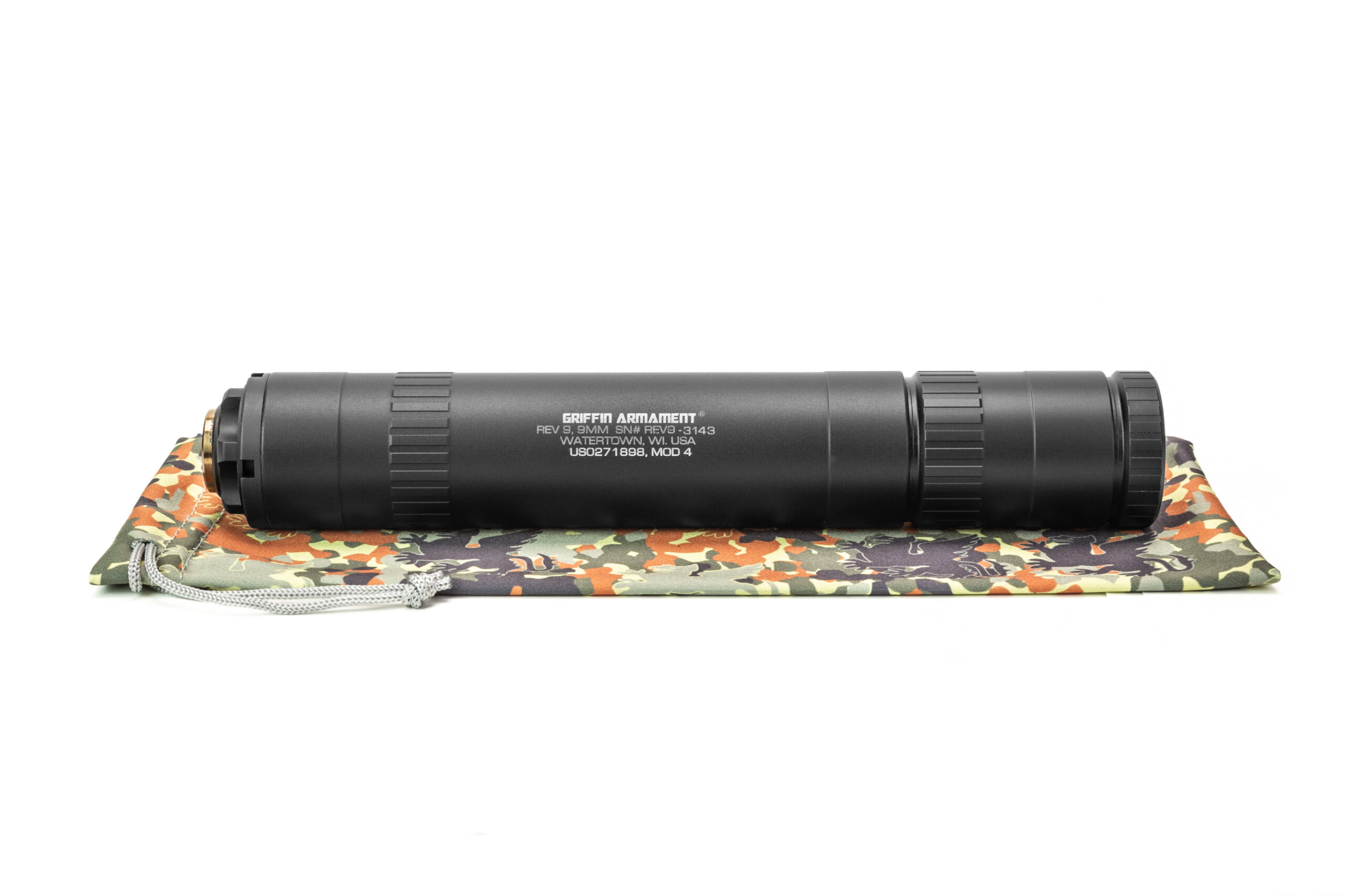

• Revolution® 9 MOD 4 Suppressor
  • (8) CARBON-GARD™ Baffles
  • (1) Main Tube Body
  • (1) Tube Extension
  • (1) 9mm Bore End Cap
  • (1) Booster Assembly with EZ-LOK™ Piston
• Griffin Revolution Armorers Wrench (multi-function wrench)
• Griffin Microfiber Silencer Pouch

Note: EZ-LOK™ barrel adapters must be purchased separately and are required to utilize the Griffin EZ-LOK™ universal piston included.

Manual

• CLICK HERE for digital manual

CARBON-GARD™

In our internal testing, the high temp silicon o-rings typically last for ~4000 rounds before starting to break down. The o-rings may become damaged by excessive removal of the baffles, end cap, or tube extension. To promote a long lifespan, it is recommended not to disassemble the silencer unless you intend to clean it, which is recommended every ~2000 rounds. These suppressors are not intended to be run without the o-rings, so it is a good idea to have a backup set on-hand if you start to notice the o-rings cracking, stretching out, or becoming damaged. You can add a spare set at the time of purchase so you have them when you need them, or come back and purchase them when you need them

CALIBER RESTRICTIONS

• Revolution® MOD 4 Suppressors do not have any barrel length restrictions for supersonic/subsonic 9mm Luger/Parabellum and any subsonic calibers of .357 or lesser diameter such as .38 Special, subsonic loaded/labelled .357 Magnum, and .300 Blackout Subsonic. While longer barrels promote longer service life, there are no minimum length restrictions with this suppressor!
• Revolution® MOD 4 Suppressors are rated for pistol and subsonic calibers with projectiles .357 and lesser diameter only. MOD 4 Revolutions® are full-auto rated for the above stipulated caliber/velocity conditions for 60 rounds prior to cooling.
